Product Overview
PRODUCTION DESCRIPTION:
This instrument is a digital insulation tester which adopts DC voltage converter of low consumption,high converter ratio,and inductance-type energy storage to convert the voltage of 9V DC into 250V/500V/1000V DC.
With digital bridge, the instrument can test insulation and its main features include easy to operate,wide test range,highly stable performance,backlight LCD display,date hold and auto power off.Using a shoulder strap,it can be used by both hands.
It is an ideal instrument that can be used in testing insulation of electric machines,cables,electronic equipment, electric facilities,etc.
·It is an accurate, reliable insulation tester. Easy to use.
·It has Strong anti-magnetic and anti-jamming function.
·Dual Alarm: sound and light. When a shortcut resistance occurred the display returns to zero to prevent burning underground.
·Full function protection, anti high voltage circuit design. High voltage and short alarm input.
SPECIAL FUNCTION:
Max.display: 1999
Continuity alarm: Less than 30Ω±10Ω
Low battery indication
Data hold
LCD backlight
Function protection
Input impedance: 1MΩ
Sampling rate: 3 times/Sec.
GENERAL CHARACTERISTIC:
Power source: 6 * 1.5V AA battery or external DC 9V power source((Not include battery))
LCD size: 75×52mm
Weight: 580g ((Not include battery))
Meter size: 176 (L) x116 (W) x63 (D) mm
Color: Dark gray-yellow
Package Size: 20.5 * 17 * 7cm / 8 * 6.7 * 2.7in
Package Weight: 709g / 1.6lb

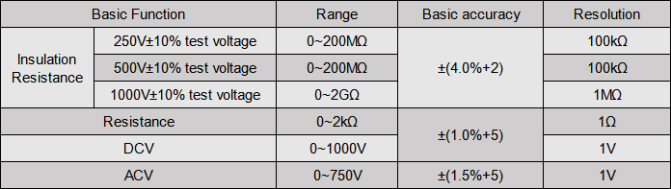

SPECIFICATION:

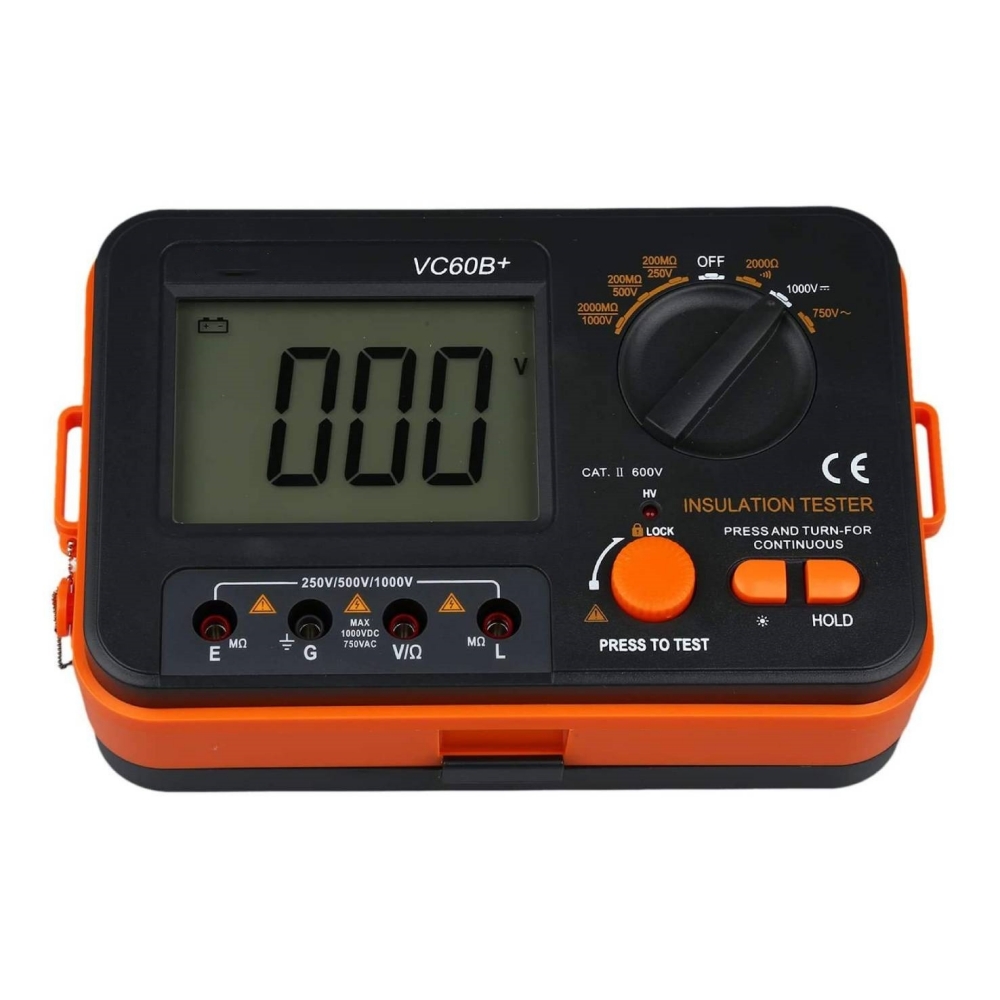

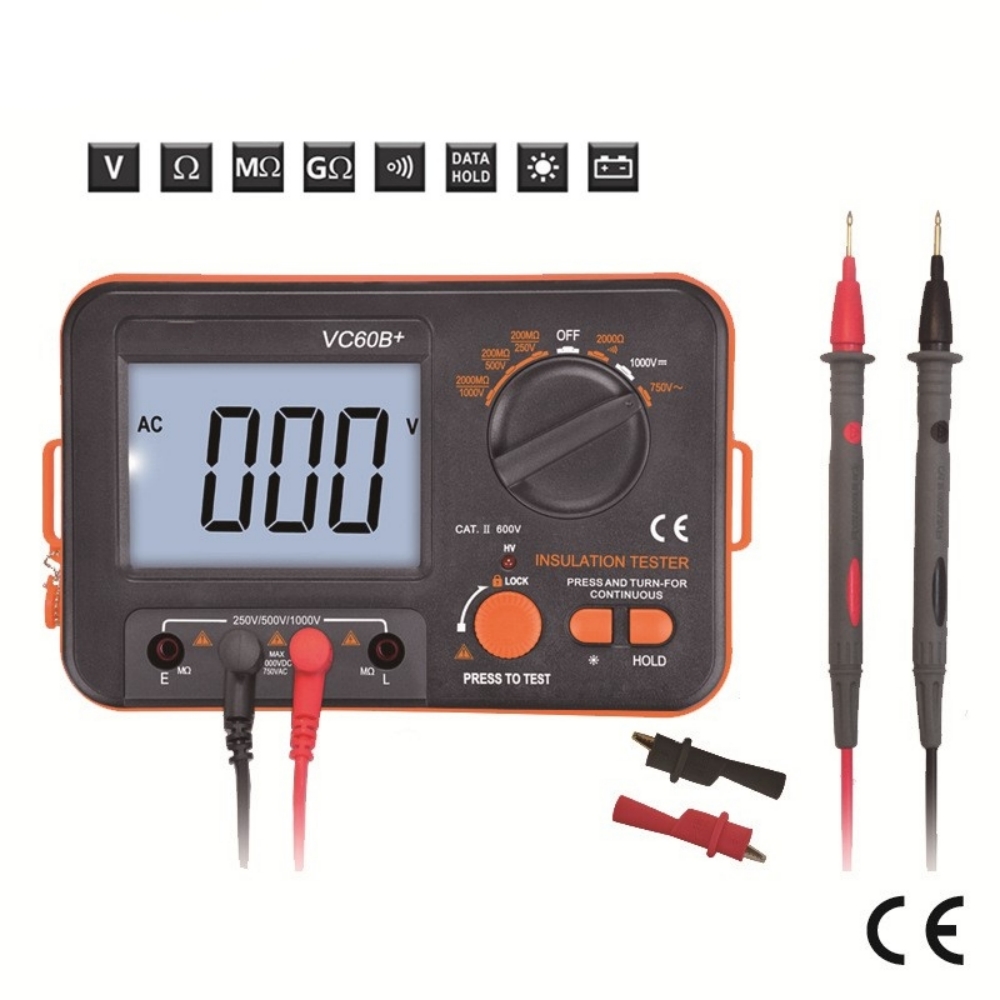

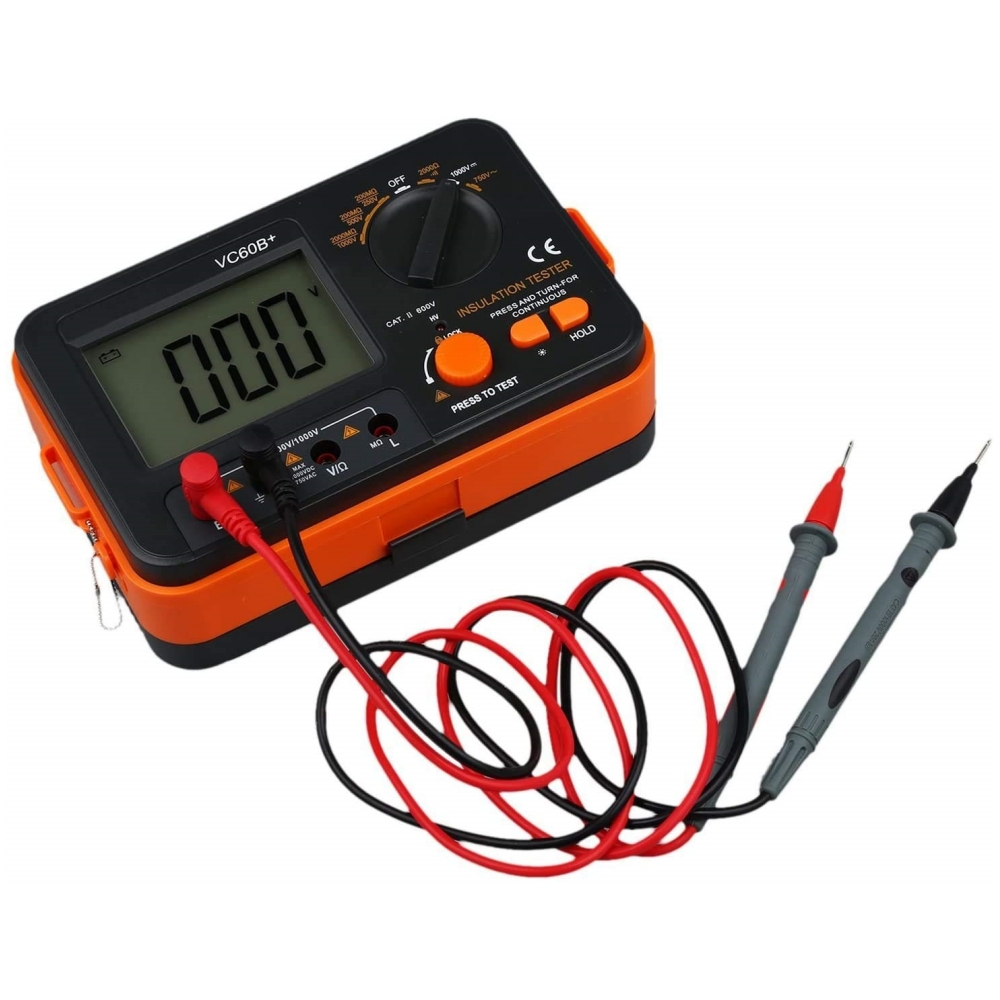

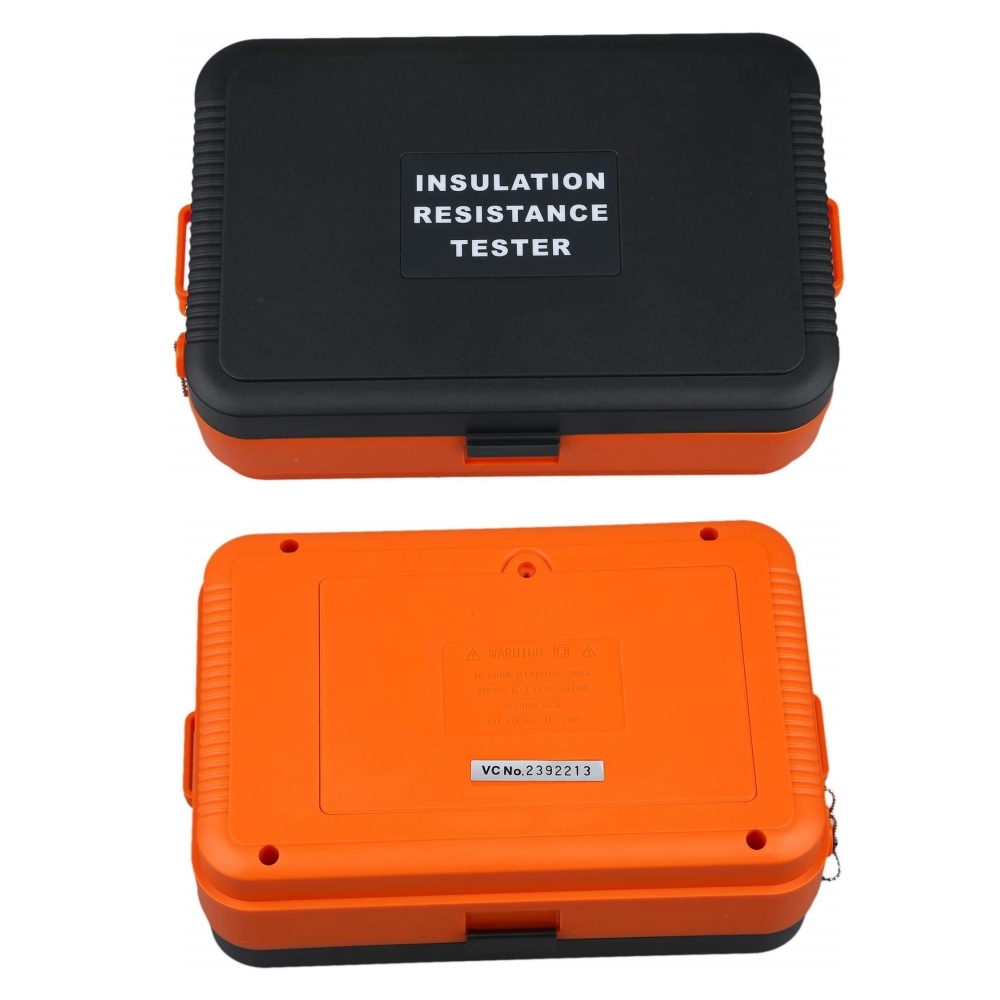

PRODUCT PICTURE:

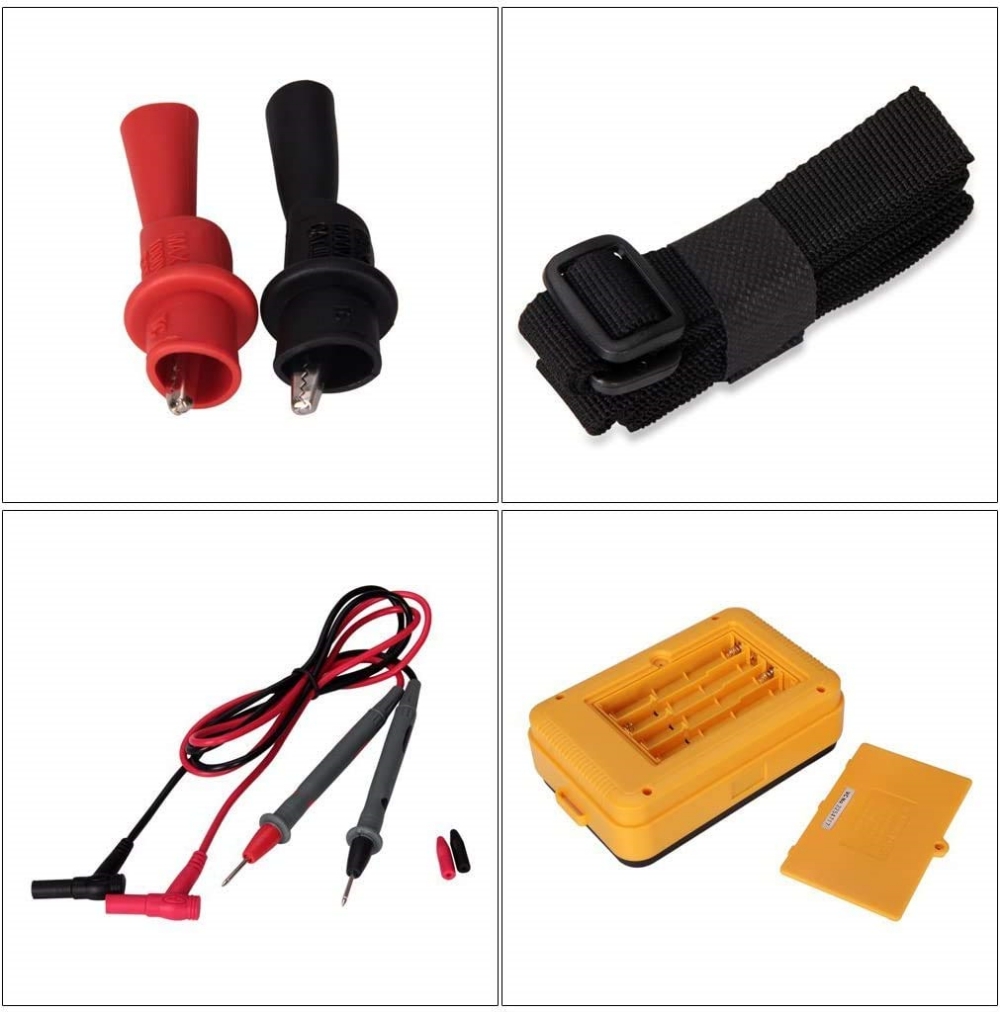

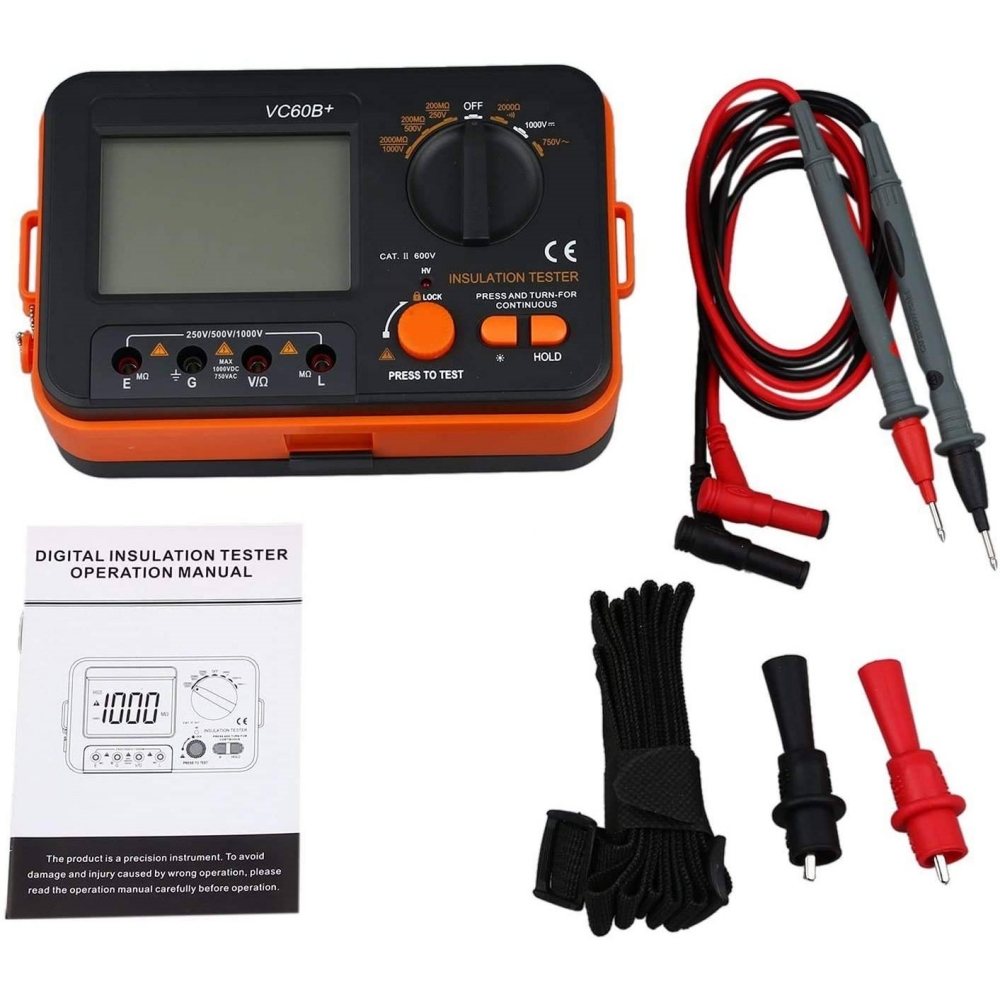

PACKAGE LIST:
1 * VC60B+ Insulation Resistance Tester
1 * Pair Test Lead
2 * Alligator Clips
1 * English Manual
