HOLDPEAK HP-6205 Digital Clamp Meter AC/DC Current Voltmeter Ohm 6000 Counts

Item specifics

• Brand Name:HoldPeak
• Display Type:Digital Only
• Model Number:HP-6205
• Measuring Resistance Range:600/6k/60k/600k/6M/60M
• Measuring Current Range:60A/600A
• Measuring Inductance Range:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
• Weight:255g
• Operating Temperature:-20~1000'C
• Dimensions:193*73*26mm
• DIY Supplies:Electrical
• Measuring Voltage Range:60mA/600mA/6V/60V/600V
• Measuring Capacitance Range:NO
• Measuring Frequnency Range:9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.9999MHz
• Display:6000
• Diode Test:YES
• Continuity Buzzer:YES
• Date Hold:YES
• Back Light:YES
• True RMS:YES
• Inrush Current Test:YES
• Jaw Caliber:34mm
• Battery Type:1.5V(AAA)*1

General description

• HP-6205 Clamp Meter is a versatile, multi-range, portable measuring instrument.
• The meter can be used not only to measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature, diode forward voltage drop and continuity test, but also to have AC inrush current measurement, relative value measurement, data retention, peak value Hold, maximum/minimum hold, intelligent auto backlight and auto power off.
• The intelligent backlight can automatically sense the brightness of the external environment. When the external lighting is dark, the backlight can be automatically turned on, eliminating the need for manual opening and facilitating the measurement of dark places.
• The clamp meter has a wide range of applications and can be used in industries, homes, appliances, and other fields.

Product function

• Auto Range ✔

• AC True RMS ✔

• DC/AC Voltage Test ✔

• DC/AC Current Test ✔

• Test Diode Test ✔

• Continuity Buzzer ✔

• Back Light ✔

• Auto Power Off ✔

• Inrush Current Test ✔

• Data Hold ✔

• Temperature Unit Select ✔

• Min Max/ Relative Value ✔

• Resistance/ Capacitance/ Temperature/ Frequency/ Duty Cycle Test ✔

• Product Specification

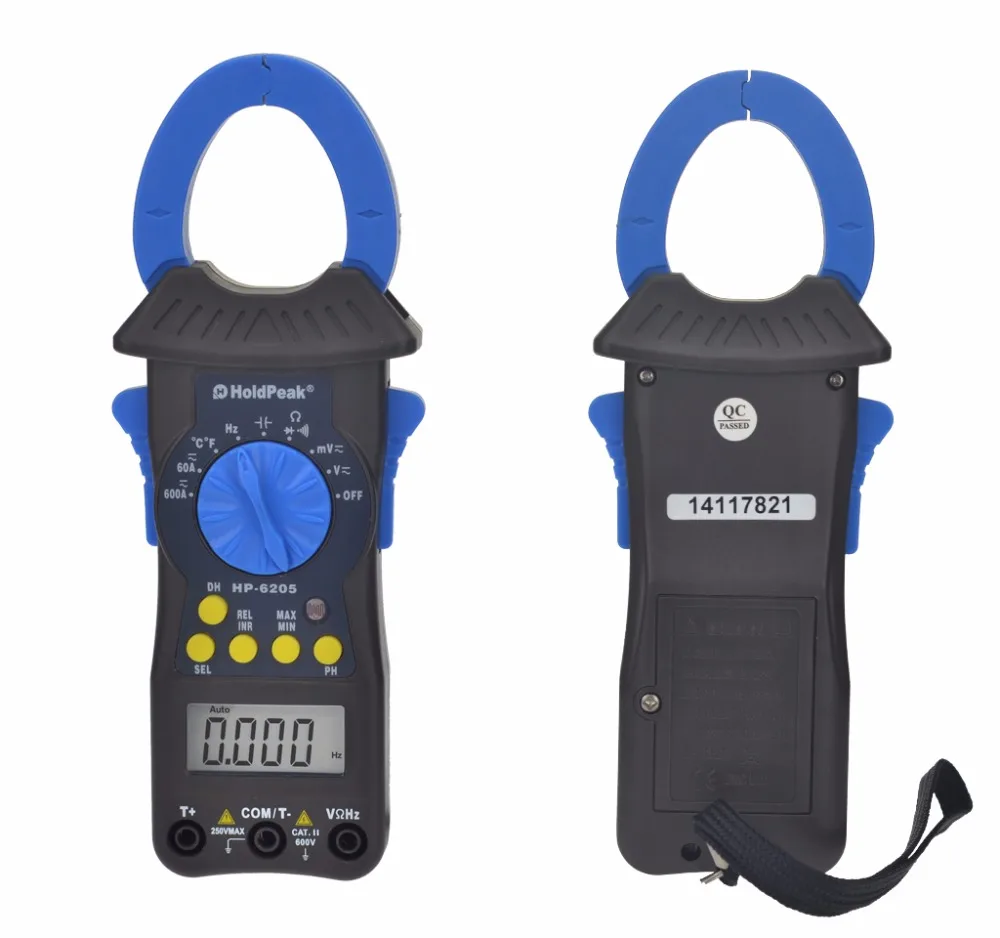

Product Picture

Packing list

• HoldPeak HP-6205 Digital Clamp Multimeter x1

• English Manual x 1

• Test Leads x1

• Carrying Bag x 1
