Product Overview
PRODUCT DESCRITION:
【High Precision Megohmmeter & Voltmeter】Voltage range：250V/500V/ 1000V/2500V; AC voltage: 1～750V; Resistance range: 1MΩ～20GΩ; Accuracy: 1MΩ～200MΩ: ±( 3.0%+5 )/ 200MΩ～10GΩ: ±( 5.0%+5 )/ 10GΩ～20GΩ: ±( 10.0%+5 ); Frequency Range:40Hz~400Hz.
【Cool Insulation Tester】HoldPeak HP-6688F Insulation Tester come with 1999 count LCD display, Data hold, Back-light, Low battery display.It has the characteristics of simpler operation and more accurate measurement,which includes the functions what you need.
【Wide Range Of Applications】HoldPeak HP-6688F can be used to measure resistance, AC voltage, the highest measurement range of resistance can reach 20GΩ.Suitable for the measurement of transformers, motors, cables, electrical appliances, and the maintenance and repair of electrical appliances.
【Reliable Design】HP-6688F come with double insulation design, the rubber sheath is dust-proof, shock-proof and moisture-proof. The back of the sheath comes with a metal bracket, can free your Hands.
【Quality Assurance】HoldPeak is provide 1 years warranty and life-time technical support. If you have any problem of HP-6688F, please feel free to contact us.
SPECIFICATION:
⭐Display: 1999 counts
⭐AC Voltage: 1V~750V
⭐Insulation Resistance: 1MΩ~20GΩ
⭐Accuracy:
1MΩ~200MΩ：±(3.0% of rdg+5 digits);
200MΩ~10GΩ：±(5.0% of rdg+5 digits);
10GΩ~20GΩ：±(10.0% of rdg+5 digits)
⭐Testing Voltage: 250/ 500/ 1000/ 2500V
⭐Accuracy: ±(2.0% of rdg+digits)
FUNCTIONS:
✅Data Hold
✅Back Light
✅Auto Ranging
✅Low Battery Indication
✅HV Red Indication Lamp Light

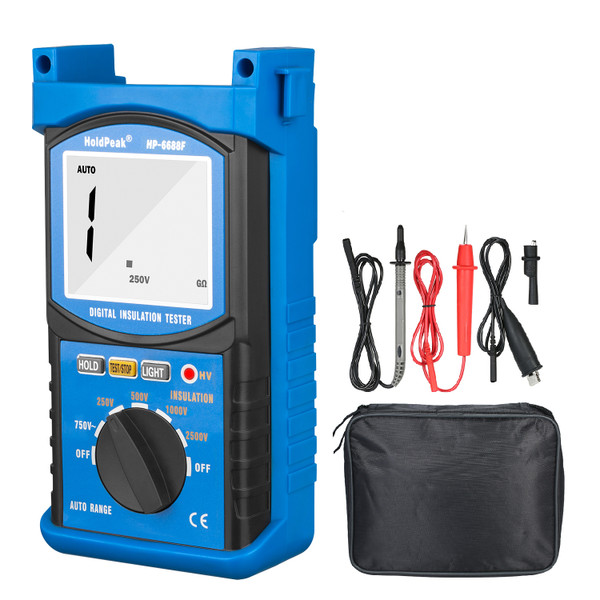

PACKAGE CONTENTS:
2*Test Lead
1*User Manual
1*Shoulder Strap
1*RQ-6688F Digital Insulation Resistance Tester
