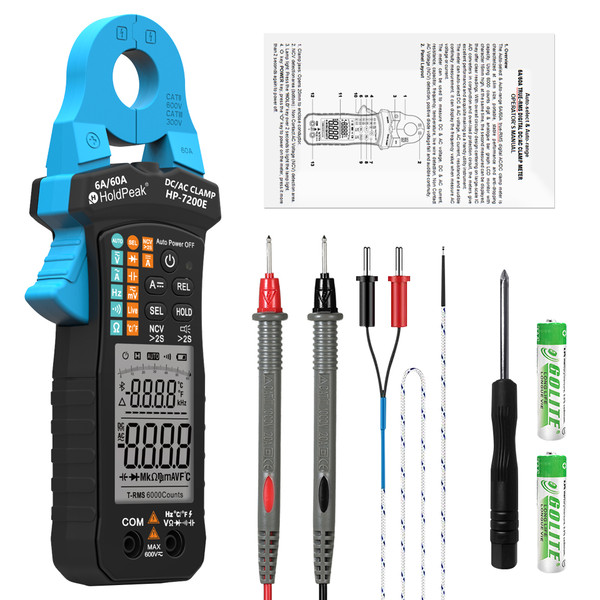

Product Overview
Description
The meter can auto-select DC & AC voltage, AC current, resistance and audible continuity measurement, it can display the frequency value when measure AC voltage or current.
The meter can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, temperature, live wire detection, Non Contact AC Voltage (NCV) detection, positive diode voltage fall and audible continuity.
Product Specification
1 Max Voltage between input terminal and Earth Ground:
CAT Ⅱ 600V or CAT Ⅲ 300V
2 Over-range Indication: display “OL” for the significant digit.
3 Automatic display of negative polarity “-” .
4 Low Battery Indication: displayed.
5 Max LCD display: 6000 counts digit.
6 Auto range control
7 Clamp opening size: 20mm.
8 Auto Power Off: When measurement exceeds 15 minutes without pressing any key, the meter will auto power off.
9Power supply: 1.5V×2 “AAA” R03P battery
10 Operating Temp.: 0℃ to 40℃ (relative humidity <85%)
11 Storage Temp.:-10℃ to 50℃ (relative humidity <85%)
12 Guaranteed precision Temp.: 23±5℃ (relative humidity <70%)
13 Dimension: 207(H)×75(W)×37(D)mm.
14 Weight: Approx. 280g (Due to different shipping channels, different batches of products may not contain batteries).
