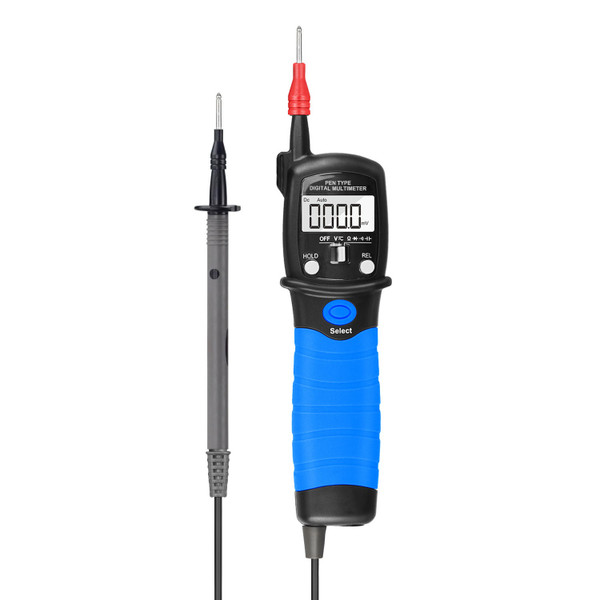

HP-38B Digital Multimeter Pen Type Voltage Resistance Meter

HP-38B pen type multimeter with stable performance and anti-dropping capacity,

uses 2000 counts digit LCD monitor with character 12mm high to offer clear readings,

giving excellent performance and exquisite making as a handy utility instrument.

1. Portable pen type multimeter, used to test DC & AC voltage, resistance, positive diode voltage fall and audible continuity.
2. 2000 counts digit LCD monitor with character 12mm high offers clear readings.
3. Use the toggle switch to select functions and ranges.
4. Other 3 keys to lock display value, turn on/off backlight, choose resistance, diode or continuity test, change units(DC or AC).
5. With auto range control function, over-range indication and low battery indication.
6. Auto Power Off: it will switch to standby mode automatically after 15mins if there's no operation.
7. The anti-slip cover with test probe slots can protect multimeter and organize probes as well.

• Material: plastic
• Display: LCD display with backlight
• Power Supply: 2 * 1.5V AAA RO3P batteries (not included)
• DC Voltage Range: 200mV/2V/20V/200V/600V
• DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
• AC Voltage Range: 2V/20V/200V/600V
• AC Voltage Resolution: 1mV/10mV/100mV/1V
• Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
• Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
• Operating Temperature: 0~40°C (relative humidity<85%)
• Storage Temperature: -10~50°C (relative humidity<85%)
• Screen Size: 3.5 * 1.5cm / 1.4 * 0.6in
• Item Size: 25 * 7.5 * 2.5cm / 9.8 * 3 * 1in
• Item Weight: 143g / 5oz
• Package Size: 26.8 * 9 * 4.3cm / 10.5 * 3.5 * 1.7in
• Package Weight: 217g / 7.7oz
