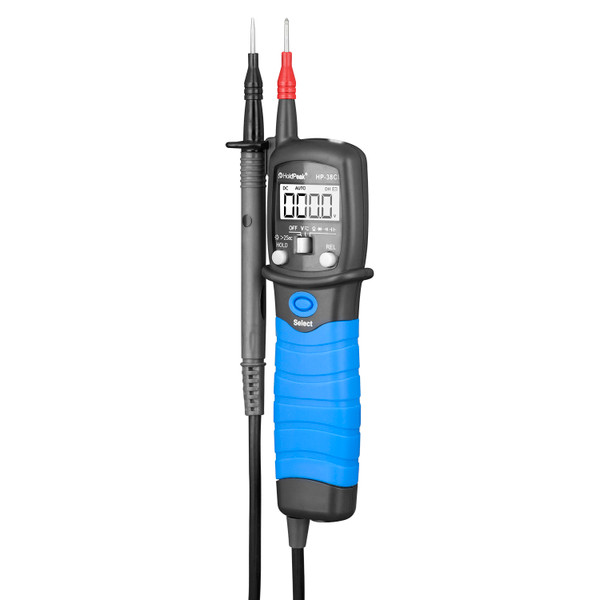

HP-38C Pen Type AC DC Voltage Resistance Capacitance Digital Multimeter

(3 reviews) Write a Review
SKU:
HP-38C
Availability:
Located in US, CN Warehouse. 24 hours Handling!
Shipping:
Calculated at Checkout
On Sale
  • Digital Multimeter, AC/DC Pen Type multimeter
  • Digital Multimeter, AC/DC Pen Type multimeter
  • Digital Multimeter, AC/DC Pen Type multimeter
  • Digital Multimeter, AC/DC Pen Type multimeter
  • Digital Multimeter, AC/DC Pen Type multimeter
Now: $22.99
Was: $27.99
Frequently bought together:

Description

  • HP-38C pen type digital multimeter may be used to measure DC / AC voltage, resistance, capacitance, continuity buzzer.
  • The overall circuit design is based on a large-scale integrated circuit double-integration A/D converter, which has low power consumption, can maintain data, and is safe to use.
  • The product's maximum display value is 5999, with backlight illumination, allowing users to read out measurement display values in dark places. It also has a light, making it easy to operate even in a dark environment.

Product Specification

Features:

  • Portable pen type multimeter, used to test DC & AC voltage, resistance,Capacitance, positive diode voltage fall and audible continuity.
  • 6000 counts digit LCD monitor with character 12mm high offers clear readings.
  • Use the toggle switch to select functions and ranges.
  • Other 3 keys to lock display value, turn on/off backlight, choose resistance, diode or continuity test, change units(DC or AC).
  • With auto range control function, over-range indication and low battery indication.
  • Auto Power Off: it will switch to standby mode automatically after 15mins if there's no operation.
  • The anti-slip cover with test probe slots can protect multimeter and organize probes as well.
  • Test Features-Accuracy was determined for one year after calibration with 70% relative humidity between 18 ° C and 28 ° C (64 ° F and 82 ° F)

Specifications:

  • Material: plastic
  • Display: LCD display with backlight
  • Power Supply: 2 * 1.5V AAA RO3P batteries (not included)
  • DC Voltage Range: 600mV/6V/60V/600V/600V
  • DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
  • AC Voltage Range: 600mV/6V/60V/600V
  • AC Voltage Resolution: 1mV/10mV/100mV/1V
  • Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
  • Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
  • Fuse Protection: replaceable fuse
  • Operating Temperature: 0~40°C (relative humidity<85%)
  • Storage Temperature: -10~50°C (relative humidity<85%)
  • Warranty Accuracy Temperature: 23 ± 5 ° C (Relative Humidity <70%)
  • Screen Size: 3.5 * 1.5cm / 1.4 * 0.6in
  • Item Size: 25 * 7.5 * 2.5cm / 9.8 * 3 * 1in
  • Item Weight: 200g

Package List:

  • 1 * Digital Multimeter
  • 1 * User Manual(English)

Product Picture



hp-38C.2jpgHTB1qn7IknTI8KJjSsphq6AFppXaEHTB1AIJSkDnI8KJjy0Ffq6AdoVXa638C-338C--2hp-38c1

HTB1medxkwfH8KJjy1zcq6ATzpXa6



View AllClose

Warranty Information

7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
