Product Overview
Item specifics:
- Brand Name:HoldPeak
- DIY Supplies:Electrical
- Display Type:Digital Display
- Measuring Inductance Range:-
- Operating Temperature:0 - 40 ℃
- Dimensions:14.5 x 10 x 3.5cm / 5.7 x 3.9 x 1.4in
- Model Number:HP-39B
- Measuring Resistance Range:200/2k/20k/200k/2M/20M Ohm
- Measuring Capacitance Range:-
- Operating Mode:Auto
- AC Voltage:2V/20V/200V/600V
- DC Voltage:200mV/2V/20V/200V/600V
- AC Current:200A/2000A/20mA/200mA/2A/10A
- DC Current:200A/2000A/20mA/200mA/2A/10A
- Temperature Range:-20~150°C, 150~1000°C/-4~302°F, 302~1832°F
- Battery Test Range:1.5V/6V/9V/12V
- Power Supply:1 x 9V 6F22 Battery (Not included)
- Display:2000 Counts
- Diode Test:Yes
- Continuity Buzzer:YesProduct Description
Description:

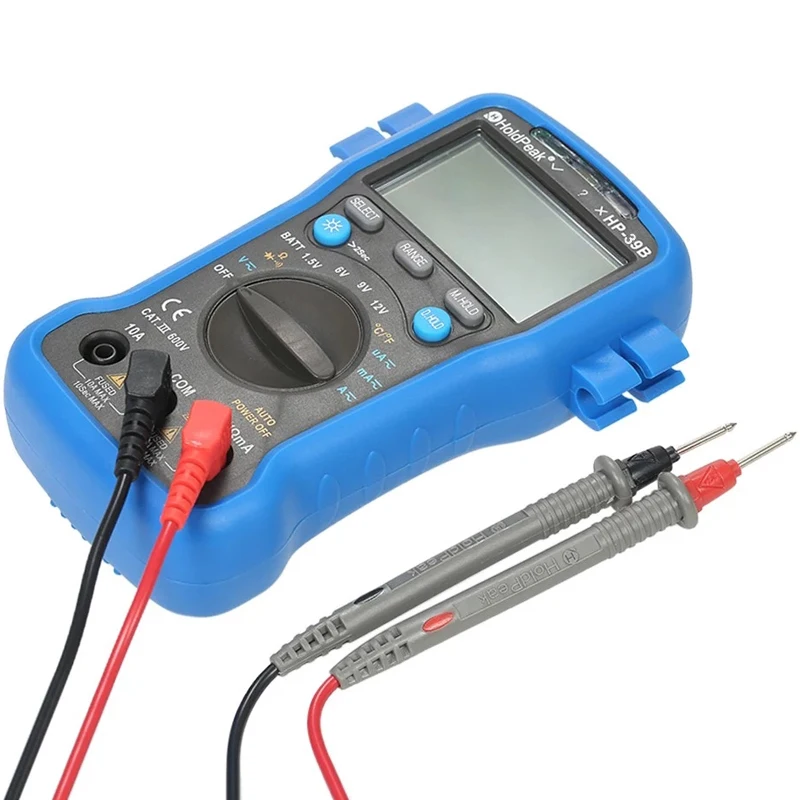

This portable multimeter with stable performance and anti-dropping capacity, uses 2000 counts digit
LCD monitor to offer clear readings, giving excellent performance and exquisite making as a handy utility
instrument.
Features:
Used to test DC & AC voltage, DC & AC current, resistance, temperature, battery test, positive diode
voltage fall and audible continuity.
2000 counts digit LCD monitor with character 25mm high offers clear readings.
5 keys: some test functions selections, unit switch, backlight on-off, test modes switch, maximum
value & display value hold.
DC/AC & °C/°F unit switchable, manual/auto test modes switchable.
Battery test: with green/yellow/red lights to clearly show the battery state.
The anti-slip cover with test probe slots can protect multimeter and organize probes as well.
A collapsible back bracket provide good support.
Precision circuit board & overload PROTECTIONS.

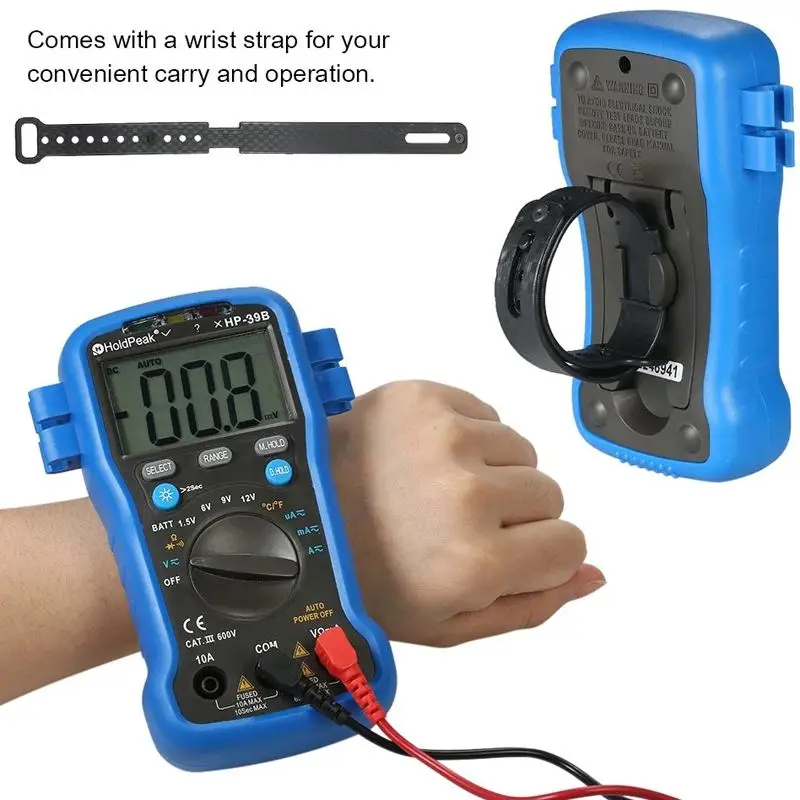

Comes with a wrist strap for your convenient carry and operation.
Specifications:
DC Voltage Range: 200mV/2V/20V/200V/600V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 2V/20V/200V/600V
AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 200μA/2000μA/20mA/200mA/2A/10A
DC Current Resolution: 0.1μA/1μA/10μA/100μA/1mA/10mA
AC Current Range: 200μA/2000μA/20mA/200mA/2A/10A
AC Current Resolution: 0.1μA/1μA/10μA/100μA/1mA/10mA
Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ

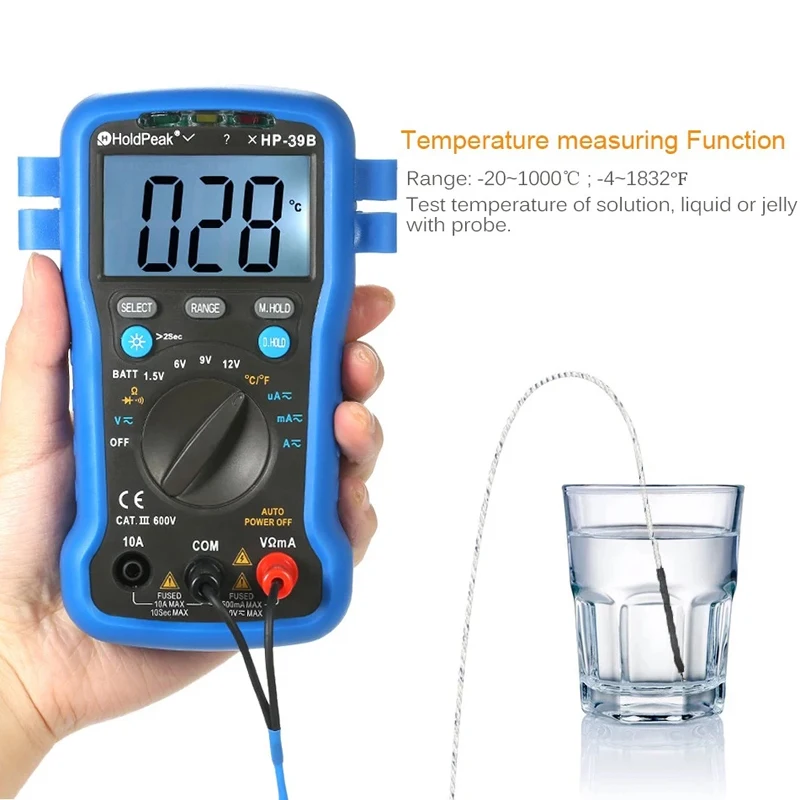

Temperature Range: -20~150°C, 150~1000°C; -4~302°F, 302~1832°F
Temperature Resolution: 1°C; 1°F
Battery Test Range: 1.5V/6V/9V/12V
Battery Test Load Current: Approx. 10mA/100mA/10mA/200mA
Battery Test Resolution: 1mV/10mV/10mV/10mV
LED Light Range: 1.5V/6V/9V/12V
Material:Plastic
Color: Black + Blue
Display: LCD display with backlight
Power Supply: 1 x 9V 6F22 Battery (Not included)
Screen Size: 5 x 3cm / 2 x 1.2in
Item Size: 14.5 x 10 x 3.5cm / 5.7 x 3.9 x 1.4in
Item Weight: 207g / 7.3oz
Package Size: 18 x 12 x 5.8cm / 7.1 x 4.7 x 2.3in
Package Weight: 344g / 12.1oz

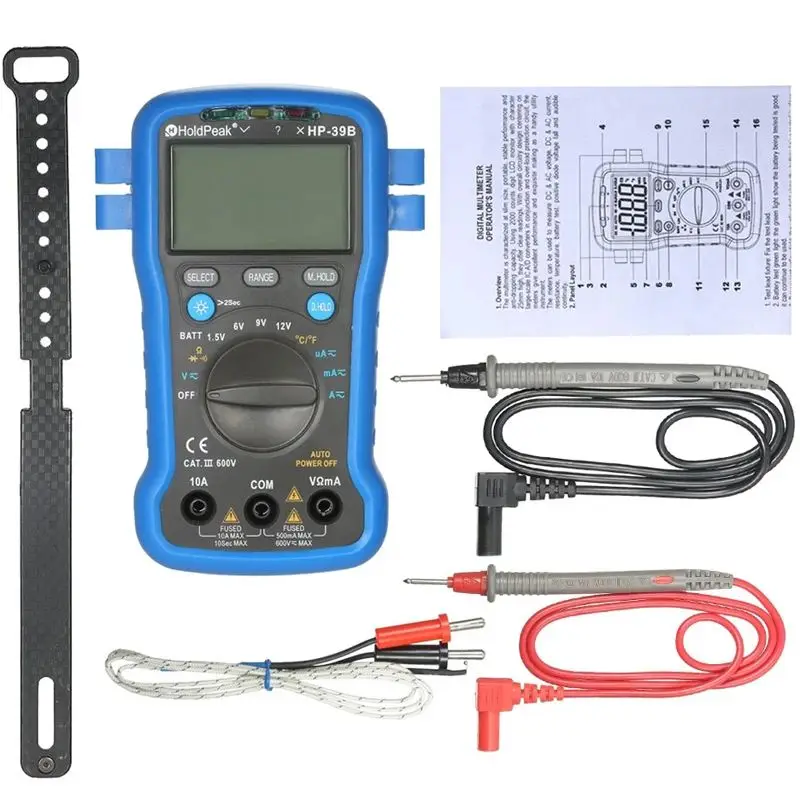

Package Included:
1 x HoldPeak HP-39B Backlight Digital Multimeter
1 x Pair of Test Leads
1 x "K" Type Thermocouple Sensor Probe
1 x Wrist Strap
1 x User Manual(English)
