HP-605C Clamp Adapter 6A/40A AC/DC Clamp Meter

★DC and AC 6A/40A Current Measurement should working with Automotive multimeter together.

★Is a series in a way the clip-on table of small ac/dc current in the measurement circuit, the characteristic of the small scale and small jaw design is mainly suitable for auto and auto 4 s shops maintenance detection static current (leakage) measurements, data center power distribution cabinet level currents detection, industrial control system of medium and small current detection, and other research and development department of medium and small power ac/dc measurement device or circuit.

Attention: This Clamp Adapter's often used with HP-770HC OR HP-770K Multimeter together.

★Output characteristics: 10mV corresponds to 1A

★Output impedance: 10K

★Conversion accuracy: ±(3.0%rdg+10dgt)

★The clamp head design, suitable for cable, Intensive measurement

★The body is small and light, easy to carry

★DC/AC Switch

★Power LED

★Automatic shutdown

★Insufficient electric quantity

★ Measuring Range: AC/DC 6A/40A Current

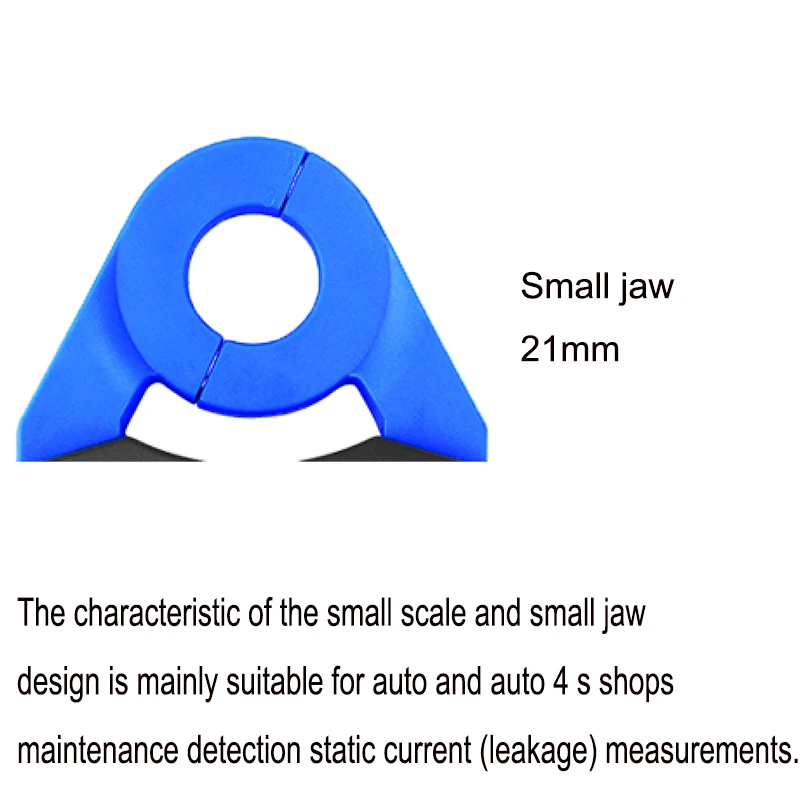

★Jaw Caliber: 21mm

★Battery Type  ( Not included in the package list ):9V*1

★Dimension: 178*90*36mm

• HoldPeak HP-605C Digital Clamp Multimeter x1

• English Manual x 1
