HP-6688D Digital Engine Analyzer

Item specifics:

• Brand Name:HoldPeak
• Operating Temperature:No
• Accuracy Class:3% of rdg+5digits
• Display Type:Digital Only
• Testing Voltage:600mV/6V/60V/600V/750V
• Model Number:HP-6688D
• DIY Supplies:Electrical
• Dimensions:21.8 * 12.2 * 7.5cm
• Measuring Range:600mV/6V/60V/600V/750V
• Model:HP-6688D
• Insulation tester:1000V
• Testing Rating Voltage:600mV/6V/60V/600V/1000V

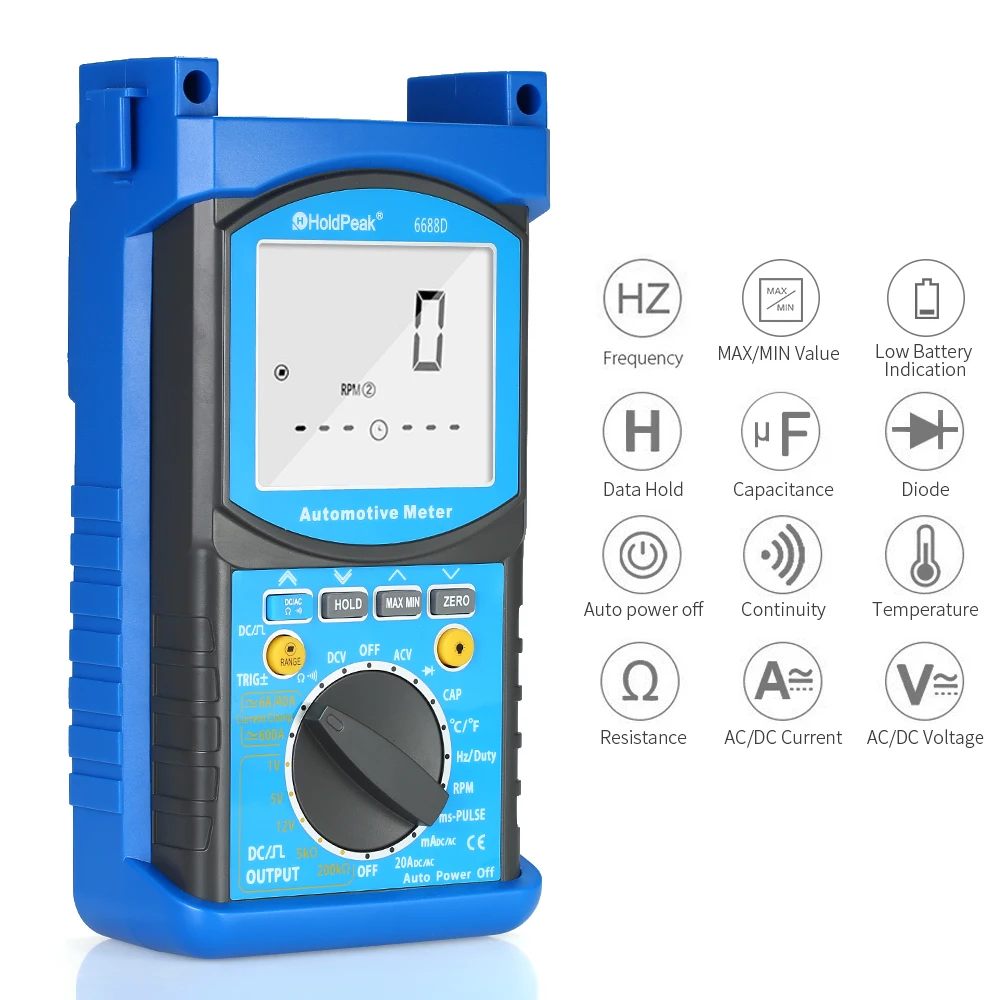

This Automotive Engine Analyzer/Multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems.

It is provided with a LCD display for clear reading. It can be used to measure DC/AC voltage/current, resistance, capacitance, frequency, temperature,

duty cycle, diode, and continuity test, etc.

• Brand Name: HoldPeak
• Color: Grey + BlueMaterial: ABS
• Maximum Display: 6000
• Range Control: Auto
• Max. display value: 6000.
• Large LCD display with backlight for clear reading.
• Can measure DC/AC voltage/current, resistance, capacitance, frequency, temperature, duty cycle, diode, and continuity test, etc.
• Can test the temperature: -20~1000°C / -4~1832°F, °C/°F unit conversion.
• MAX/MIN value, peak hold and data hold functions.
• With overload protection on all ranges.
• Includes auto power off, low battery indication and warning alarm functions.
• Equipped with a back bracket for supporting multimeter, and also can collect test probe for your convenience.
• Protected by rubber for drop protection.
• Great for troubleshooting automotive and household electrical problems.

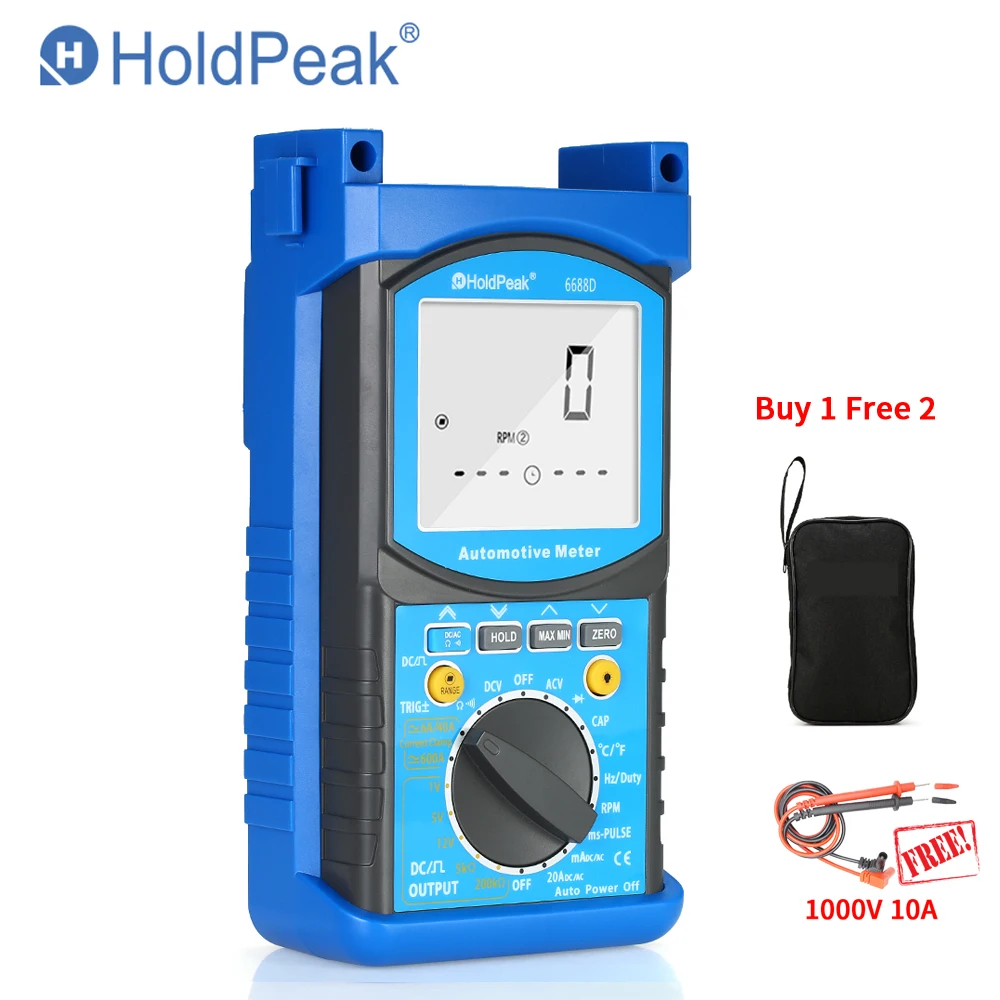

• Comes with a carry bag, easy to storage.

DC Voltage: 600mV/6V/60V/600V/1000V
AC Voltage: 600mV/6V/60V/600V/750V
DC Current: 60mA/600mA/20A
AC Current: 60mA/600mA/20A
Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Temperature: -20~1000°C / -4~1832°F
Duty Cycle: 1%~99%
ms-PULES: 0.1ms~10.0ms
Tach: 600~12000RPM
Dwell: 4/5/6/8 CYL
Diode Test: Yes
Continuity Buzzer: Yes
Signal Analog Output: Yes
Power Supply: 1 * 9V 6F22 Battery (NOT Included)
Operating Temperature: 0~50°C(32~122°F), ≤70% relative humidity
Storage Temperature: -20~60°C(-4~140°F), ≤80% relative humidity
Item Size: Approx. 21.8 * 12.2 * 7.5cm / 8.58 * 4.80 * 2.95in
Item Weight: Approx. 737g / 26oz(Without Battery)
Package Size: Approx. 26.5 * 23.5 * 7.9cm / 10.43 * 9.25 * 3.11in
Package Weight: Approx. 1201g / 42.36oz
