★★Specification of multimeter (clamp meter):

DC Voltage: 40mV（0.5% of rdg+5dgt)   400mV/4V/40V/400V(0.1% of rdg+2dgt)   1000V(0.1% of rdg+5dgt)

AC Voltage: 40mV（1%of rdg+10dgt)   400mV/4V/40V/400V(0.8%of rdg+10dgt)   750V(1.2%of rdg+10dgt)

DC Current: 400μA /4000μA /40mA/400mA(1% of rdg+10dgt)   4A/20A(1.2% of rdg+10dgt)

AC Current:400μA /4000μA /40mA/400mA(1.2% of rdg+10dgt)   4A/20A(1.5% of rdg+10dgt)

Resistance: 400Ω(1.0% of rdg+3dgt)
                  4kΩ/40kΩ /400kΩ/4MΩ(0.5% of rdg+10dgt)
                  40MΩ(1% of rdg+10dgt)

Capacitance: 9.999nF~99.99mF

Temperature: -20℃~1000℃(-4℉~1832℉)(3% of rdg+2dgt)

Frequency: 9.999Hz~9.999MHz(0.1% of rdg+5dgt)

Duty Cycle: 0.1%~99.9%（2.0% of rdg+2dgt)



★★Features of the multimeter tester:

• High Accuracy: 0.1%+2dgt
• Display Counts: 40000
• Auto Range: Yes
• Diode Test: Yes
• hFE Test: Yes
• Continuity Buzzer: Yes
• Data Hold: Yes
• Auto Back Light:
• Auto Power Off: Yes
• Function Switch Indicator Lamp: Yes
• NCV: Yes
• True RMS: Yes
• Relative Value: Yes
• Max/Min: Yes
• Bar Graph Display: Yes
• Battery Type: 9V(6F22)
• Dimension: 195x88x40mm
• Weight: 350g

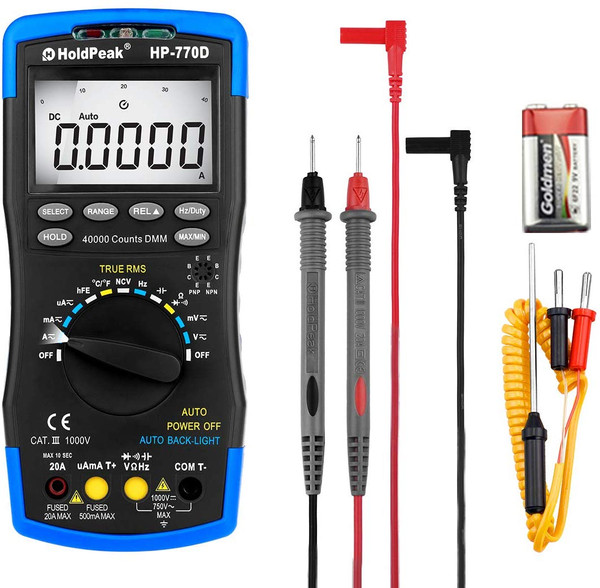

★★Package Contents:

• 1 x Digital Multimeter
• 1 x Test Leads (Pair)
• 1 x K-Type Thermocouple
• 1 x Multi-Function Socket
• 1 x User Manual
