HP-838L Digital Multi Tester with High Accuracy AC/DC Current,AC/DC Voltage,Manual Ranging Resistance Capactiance ContinuityDiode hFE testing

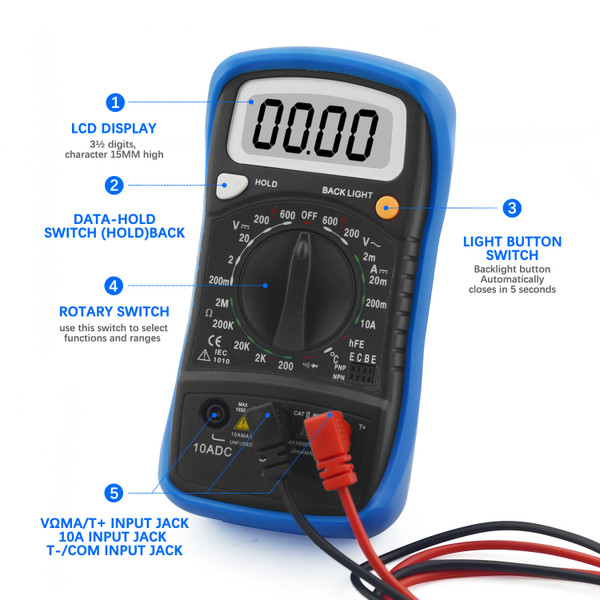

This multimeter is characterized at slim size, portable, stable performance and anti-dropping capacity. Using 3½ digits LCD monitor with character 15MM high, they offer clear readings.
With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit
The meters can be used to measure DC & AC voltage, DC current, resistance, temperature, positive diode voltage fall, hFE parameters for transistor and Continuity.
- The meters are designed according to IEC-1010 concerning electronic measuring instruments with an over-voltage category (CAT Ⅲ) and pollution 2.
- Max Voltage between input terminal and Earth Ground: CAT Ⅲ 600V 5-2 Over-range Indication: display “1” for the significant digit.
- Max LCD display: 1999 (31/2 digits)
- Fuse protection: F-200mA/250V (Ø5x20MM)
- Power Supply: 9V battery, 6F22 or NEDA 1604
- Operating Temp.: 0℃ to 40℃ (relative humidity <85%) 5-9 Storage Temp.:-10℃ to 50℃ ((relative humidity <85%) 5-10 Guaranteed precision Temp.: 23±5 ℃
(relative humidity <85%)
- Dimension: 69x138x31MM
- Weight: approx. 170g
- HOLDPEAK HP-838L Digital Multimeter Multi Tester x1
- User's Manual x 1
- Test Lead x1
The standard package doesn't include batteries. Because, the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box. Hope you can understand buy them in your local store or supermarket.Thanks for your support!
