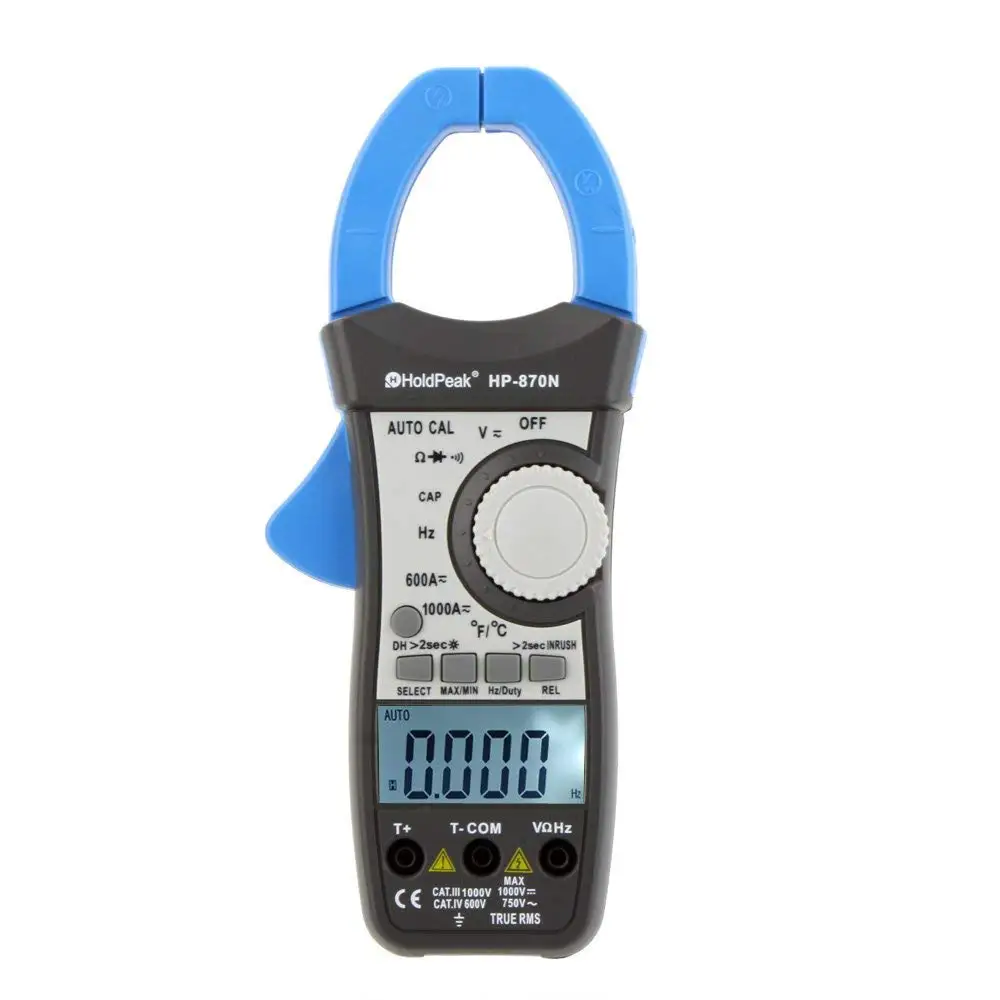

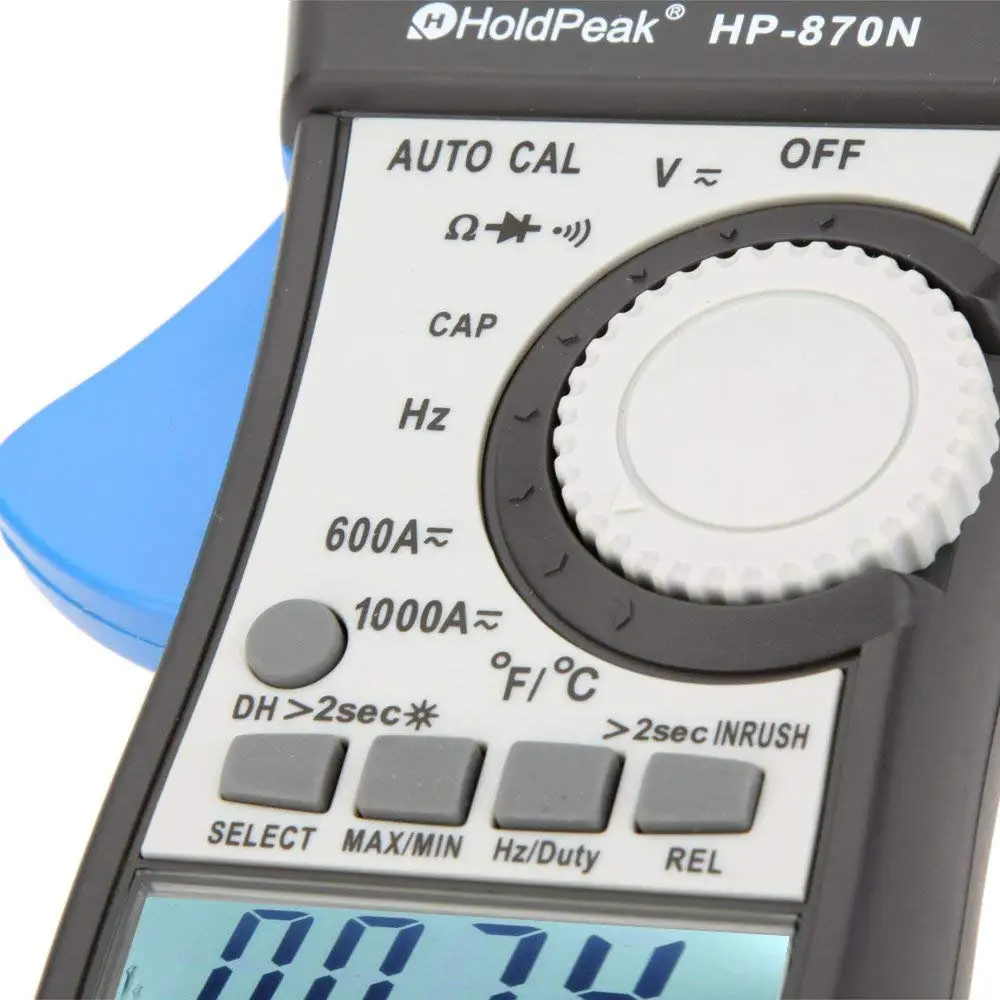

HP-870N Auto Range Multimetro Digital Clamp Meter Multimeter

(No reviews yet) Write a Review
SKU:
HP-870N
Shipping:
Free Shipping
On Sale
  • Auto Range Multimetro, Digital Clamp Meter Multimeter, Multimeter
  • Auto Range Multimetro, Digital Clamp Meter Multimeter, Multimeter
  • Auto Range Multimetro, Digital Clamp Meter Multimeter, Multimeter
  • Auto Range Multimetro, Digital Clamp Meter Multimeter, Multimeter
Now: $36.09
Was: $44.99

Description

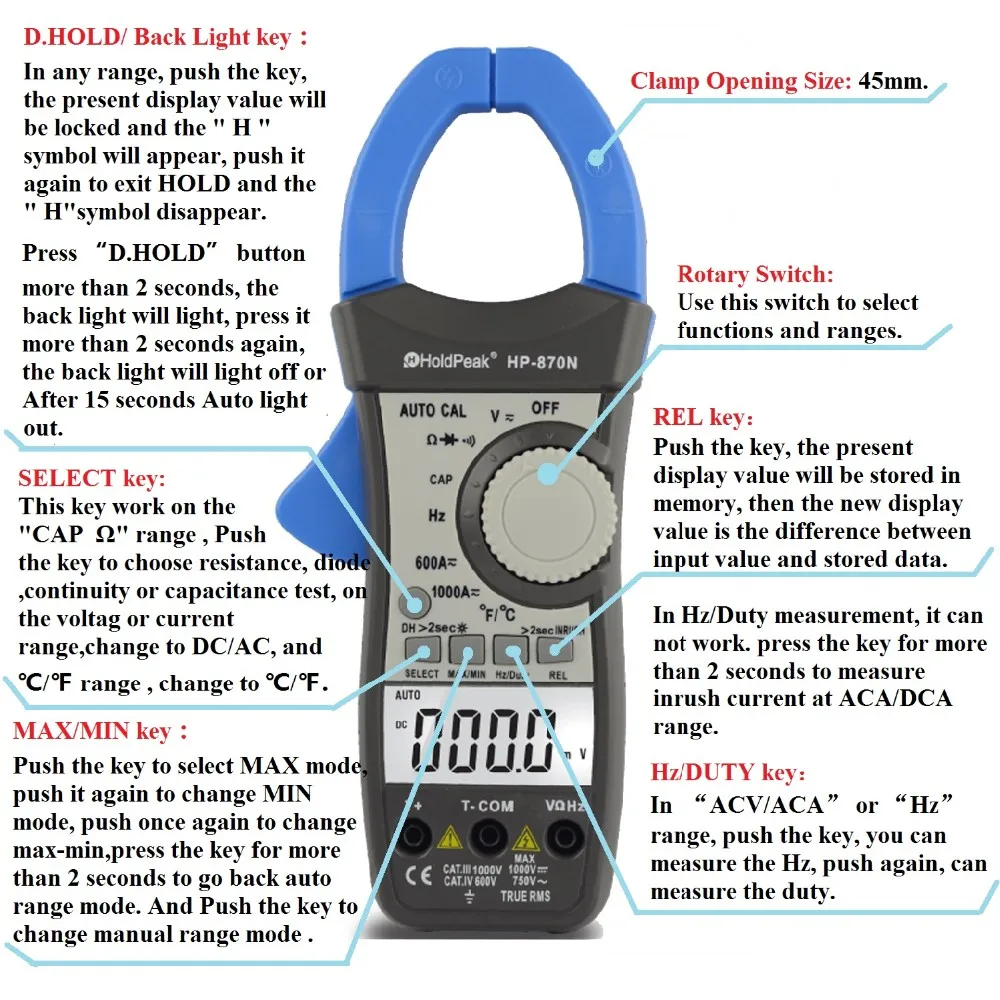

  •    HP-870N is characterized at full range over current protection,low power consumption,stable performance and anti-dropping capacity.
  •    Auto ranging clamp multimeter with AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, diode test, continuity test,Inrush Current Test,Relative Value
  •    Jaw opening measures AC current in a conductor up to 45mm without interrupting the circuit.
  •   Features Data Hold, Max/Min Reading, Backlight, an easy-to-read large LCD.
  •   Comes with a handy carrying pouch - Perfect for use while on the go.
  •   HP-870N can be widely used in home,school,smelting,communications, manufacturing,petroleum refining industry,national defense,electricity and chemical industries,etc.
function

Conform to the IEC61010-1 & IEC61010-032 standard

Double insulation (protection class 600V CAT III and pollution degree 2)

Inrush function

The over-molding rubber case protects the meter to be stronger

Auto Range/True RMS

DC/AC Voltage Test

DC/AC Current Test

Test Diode Test/Continuity Buzzer

Back Light/Data Hold

Auto Power Off

Inrush Current Test

Relative Value

Temperature Unit Select

Min Max/ Relative Value

Resistance/ Capacitance/ Temperature/ Frequency/ Duty Cycle Test

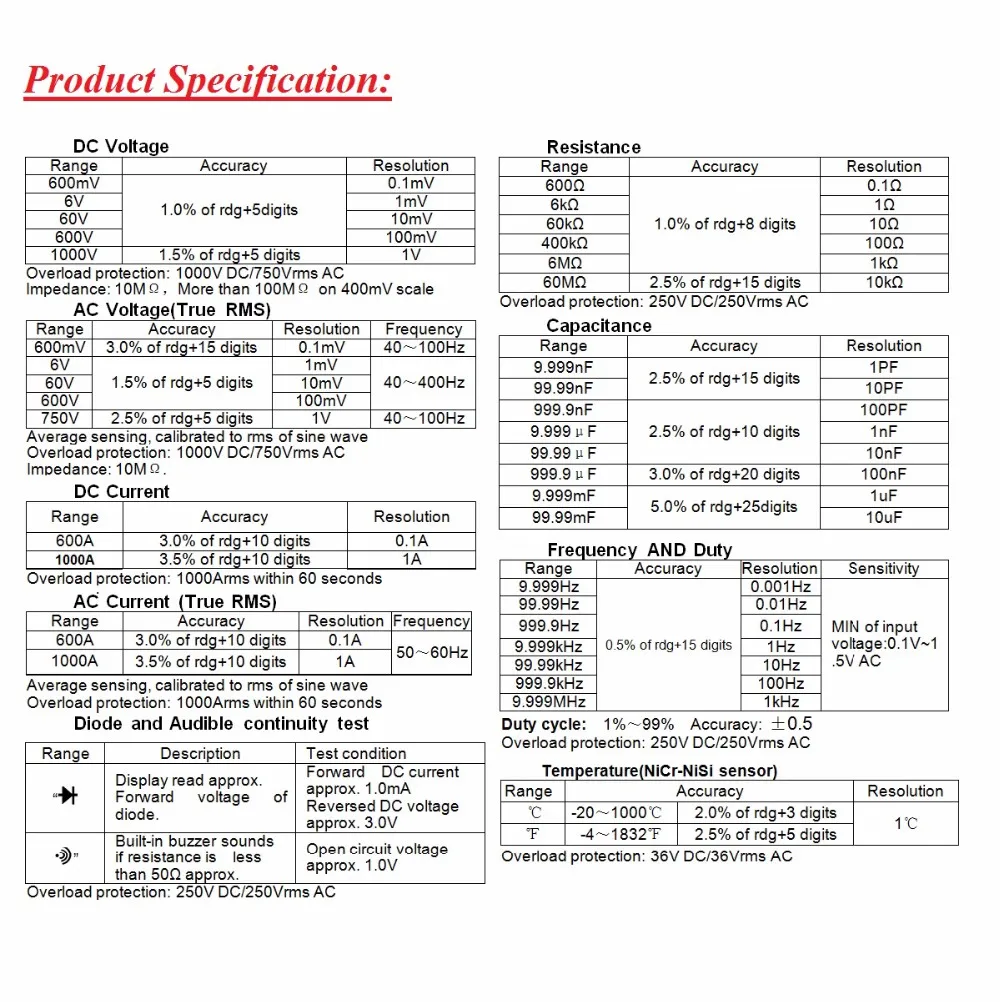

specification

Display: 6000 counts

DC current: 200A/1000A ±3.0%

AC current: 200A/1000A ±3.0%

DC voltage: 600mV/6V/60V/600V/1000V ±0.8%

AC voltage: 600mV/6V/60V/600V/750V ±1.0%

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±1.8%, 60MΩ ±3.5%

Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/999.99mF ±2.5%

Temperature: -20~1000℃ ±2℃ / -4~1832℉ ±2.5% of  rdg

Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±2.50%

Duty cycle: 0.1%~99.9% ±3.0%

Continuity checking with buzzer

Diode test

MAX.Diameter for conductor: 45mm

Power: 9V(6F22)*1 (not included)

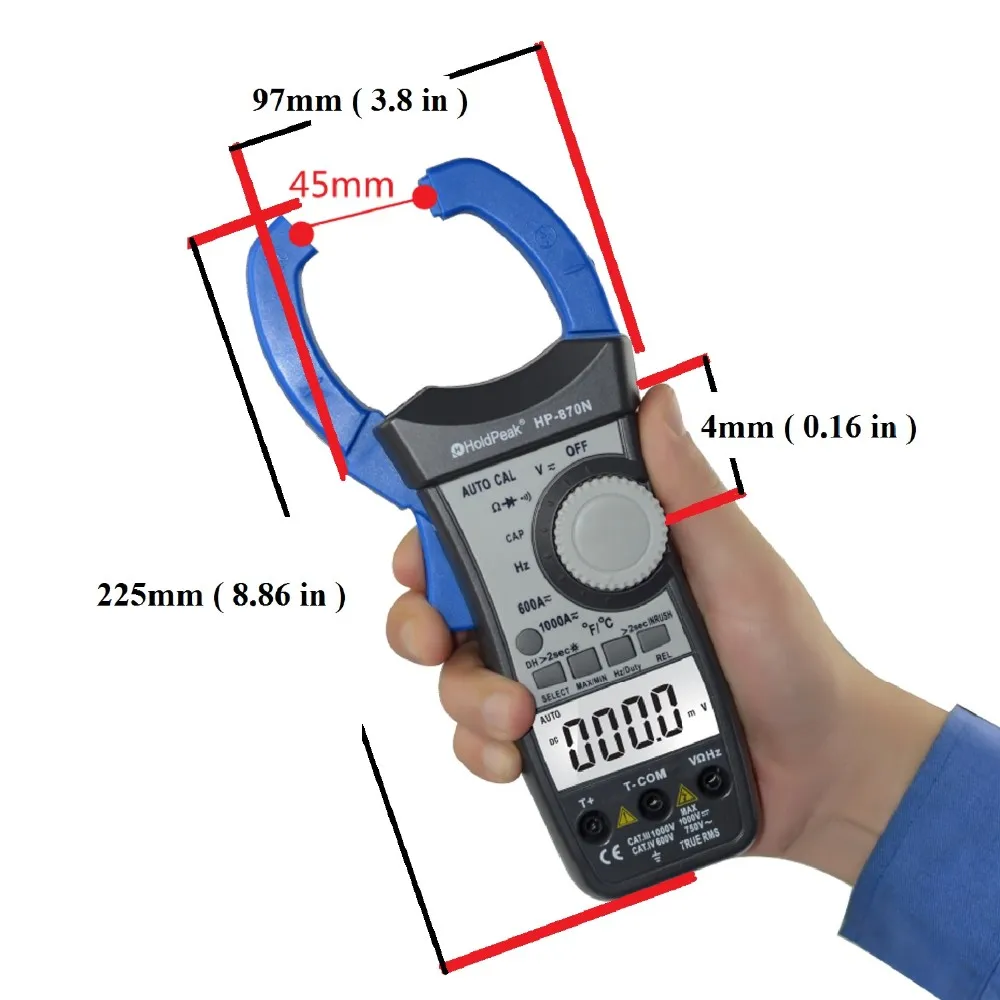

Size: 225mm x 97mm x 40mm




51A1pp3QVUL._SL1000_51asZtMjG+L._SL1000_51M5tB1Q5hL._SL1000_61aqDONSTCL._SL1000_51PN5B6j35L._SL1000_HTB1LeTPJFXXXXXAXVXXq6xXFXXXJ

HTB1JT6tXhrvK1RjSszeq6yObFXa6

list

  • HoldPeak HP-870N Digital Clamp Multimeter x1
  • English Manual x 1
  • Test Leads x1
  • Temperature Test Probe x 1
  • Carrying Bag x 1
