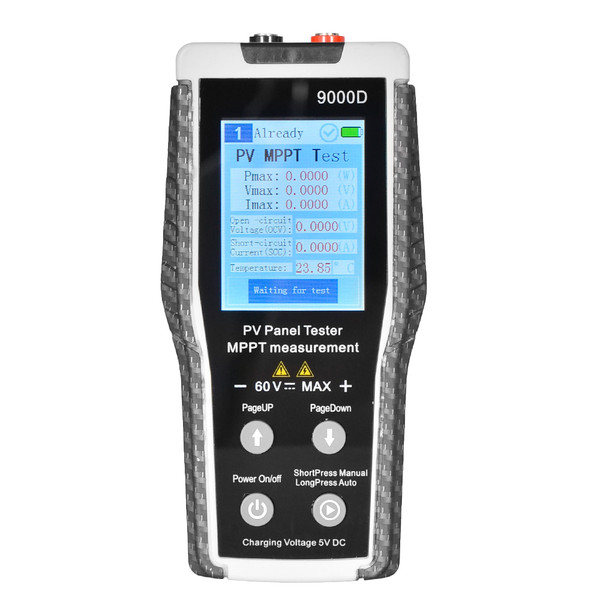

Product Overview
Core Features
-
MPPT Testing:
-
Measures Pmax (5–800W), Vmax (0–60V), Imax (0–35A)
-
Accuracy: ±(1.5% + 5 digits) for power/voltage/current
-
Auto/Manual Test Modes with adjustable intervals
-
-
Safety Protections:
-
Overheating alarm & auto shutdown
-
Reverse connection/overvoltage/overcurrent protection
-
Max input limit: 800W (exceeding may damage the device)
-
-
Data Management:
-
Stores 14 groups of manual/auto test results
-
Displays real-time charts (voltage/current/power curves)
-
Red highlight for MPPT point data
-
Technical Parameters
| Parameter | Range | Accuracy |
|---|---|---|
| Pmax (MPPT Power) | 5–800W | ±(1.5% + 5 digits) |
| Vmax (MPPT Voltage) | 0–60V | ±(1.5% + 5 digits) |
| Imax (MPPT Current) | 0–35A | ±(1.5% + 5 digits) |
| Open Circuit Voltage | 0–60V | ±(1.5% + 5 digits) |
| Short-Circuit Current | 0–35A | ±(1.5% + 5 digits) |
| Internal Temperature | 0–60℃ | ±(3% + 2℃) |
General Functions
-
Display: 2.8-inch TFT screen
-
Controls: Power/Test/Page navigation keys
-
Connectivity: MC4 cables & alligator clips included
-
Operating Condition: Requires sunlight for measurement
