Product Overview
Item specifics
- Brand Name:HoldPeak
- DIY Supplies:Electrical
- Display Type:Digital Display
- Measuring Inductance Range:-
- Operating Temperature:0 - 40 ℃
- Dimensions:167*90*50mm
- Model Number:HP-90F
- Measuring Resistance Range:200/2K/20K/200K/2M/20M/200M ohm
- Measuring Capacitance Range:-
- Operating Mode:Manual Range
- AC Voltage:2V/20V/200V/750V
- DC Voltage:200mV/2V/20V/200V/1000V
- AC Current:2mA/20mA/200mA/10A
- DC Current:200uA/2mA/20mA/200mA/10A
- Display:1999
- Diode Test:Yes
- Battery Test:1.5V,6V,9V
- Data Hold:Yes
- Auto Back Light:Yes
- Continuity Buzzer:Yes

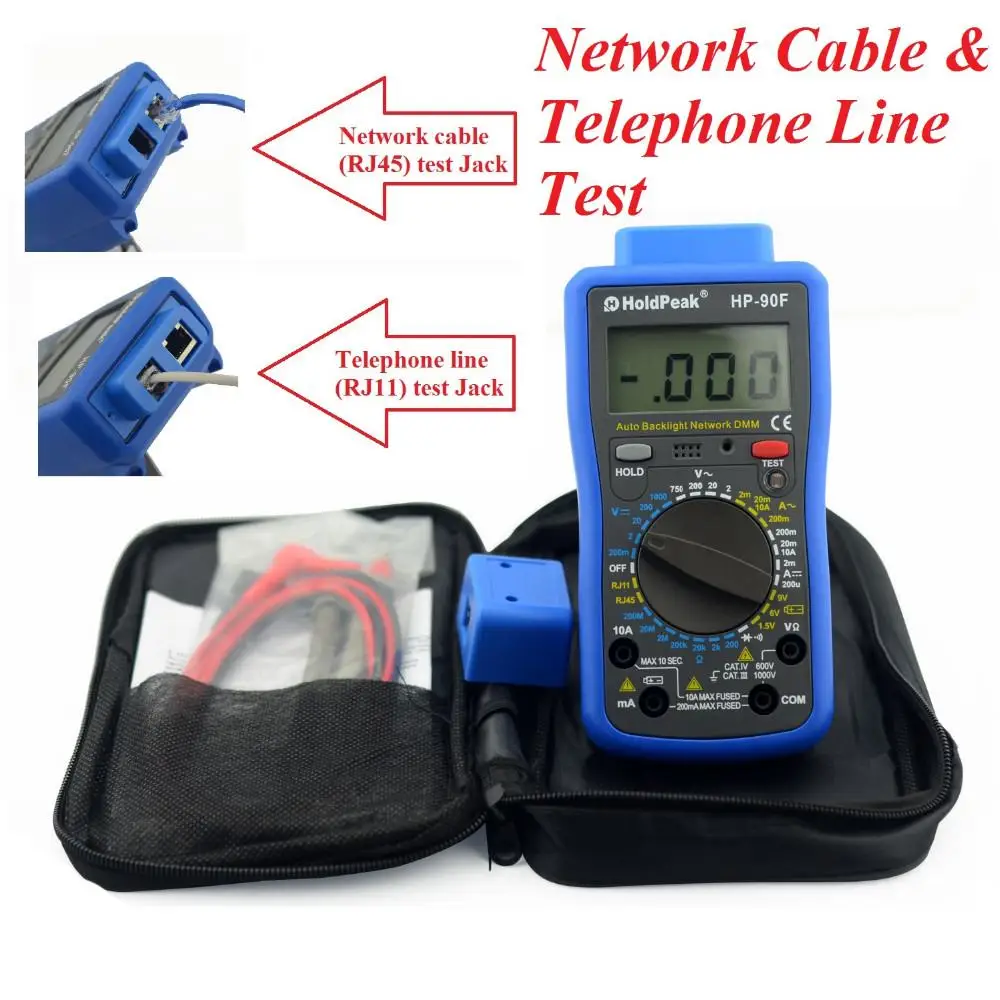

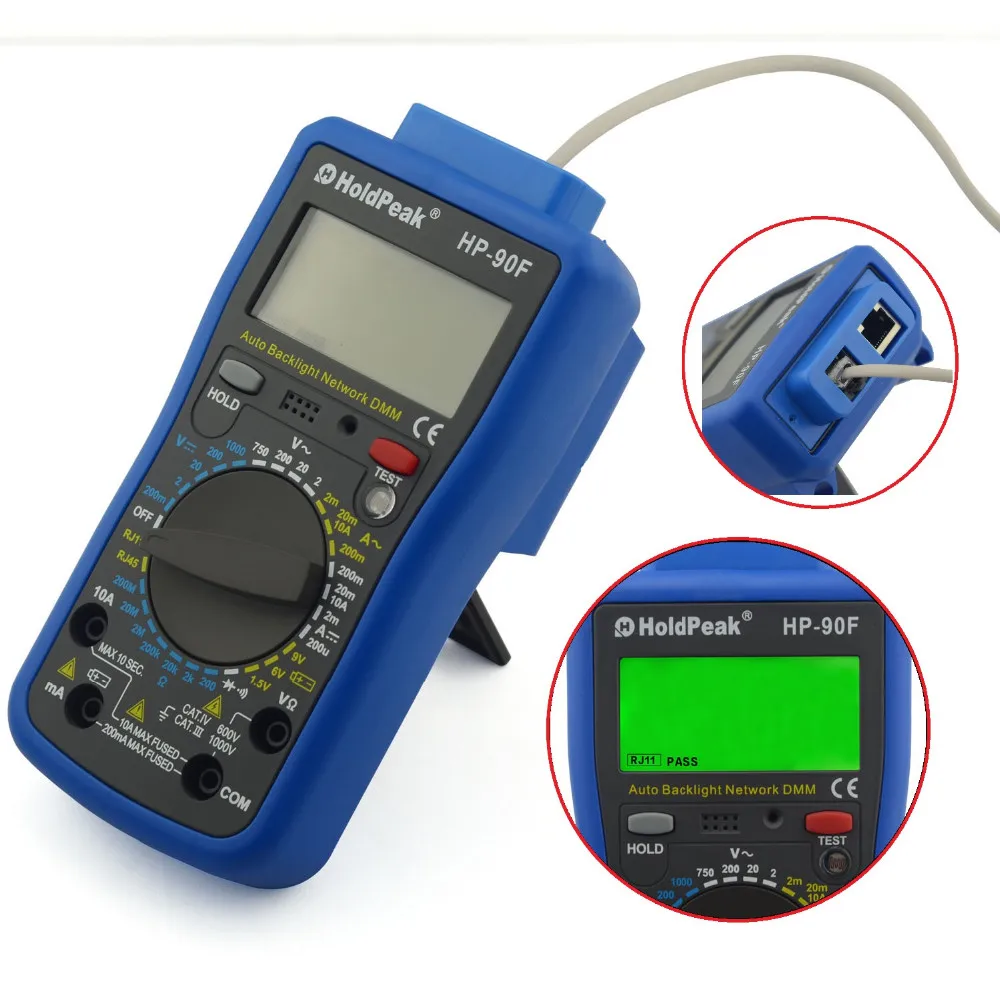

- Telephone Line Test (RJ11):Yes

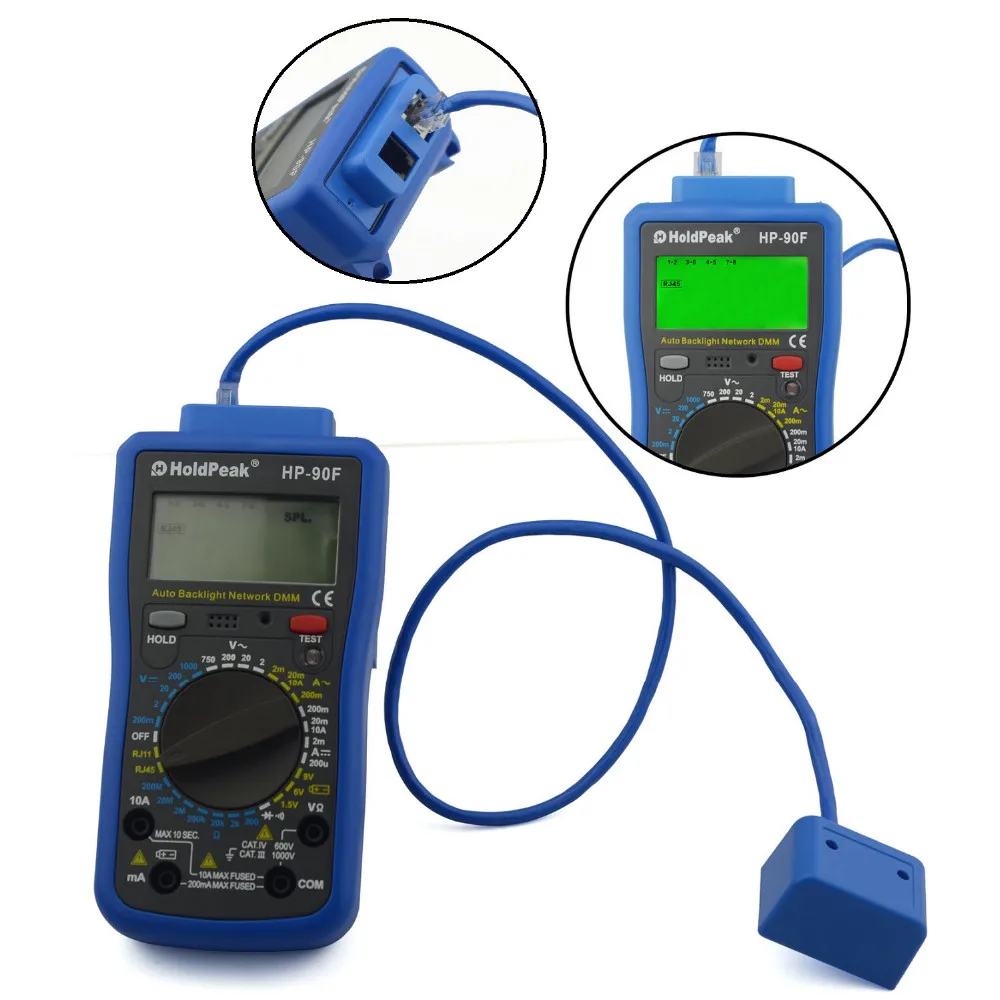

- Network Cable Test (RJ45):Yes
- hFE Test:Yes
- Auto Power Off:Yes
Product Description

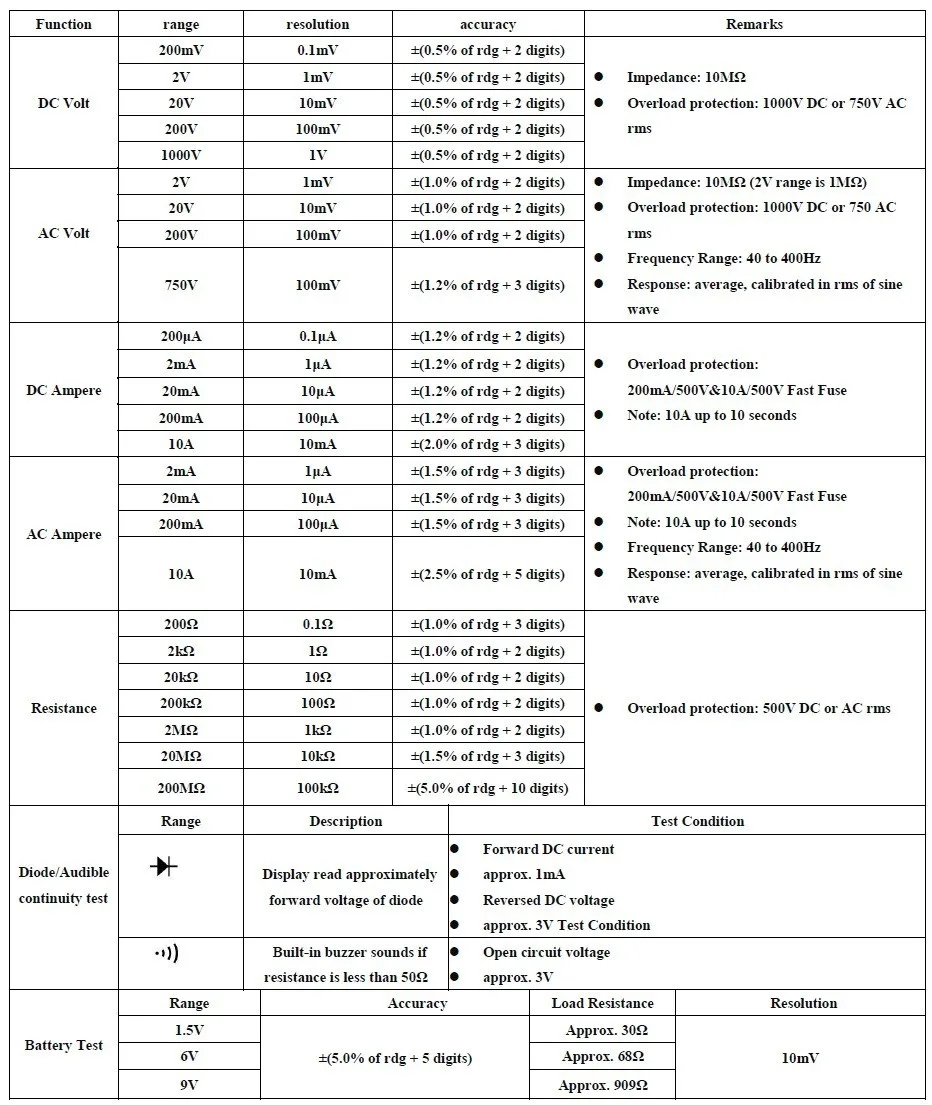

Specifications:
Brand Name:HoldPeak
Model Number:HP-90F
Dimensions:167*90*50mm
DC Current:200uA/2mA/20mA/200mA/10A
DC Voltage:200mV/2V/20V/200V/1000V
Operating Temperature:0 - 40 ℃
Measuring Resistance Range:200/2K/20K/200K/2M/20M/200M
AC Current:2mA/20mA/200mA/10A
Display Type:Digital Display
AC Voltage:2V/20V/200V/750V
DIY Supplies:Electrical
Operating Mode:Manual Range
Display:1999
Range Select:Manual
Features:
Diode Test:Yes
Data Hold:Yes
Auto Back Light:Yes
Continuity Buzzer:Yes
Battery Test:1.5V,6V,9V
Telephone Line Test (RJ11):Yes
Network Cable Test (RJ45):Yes
hFE Test: Yes
Auto Power Off: Yes

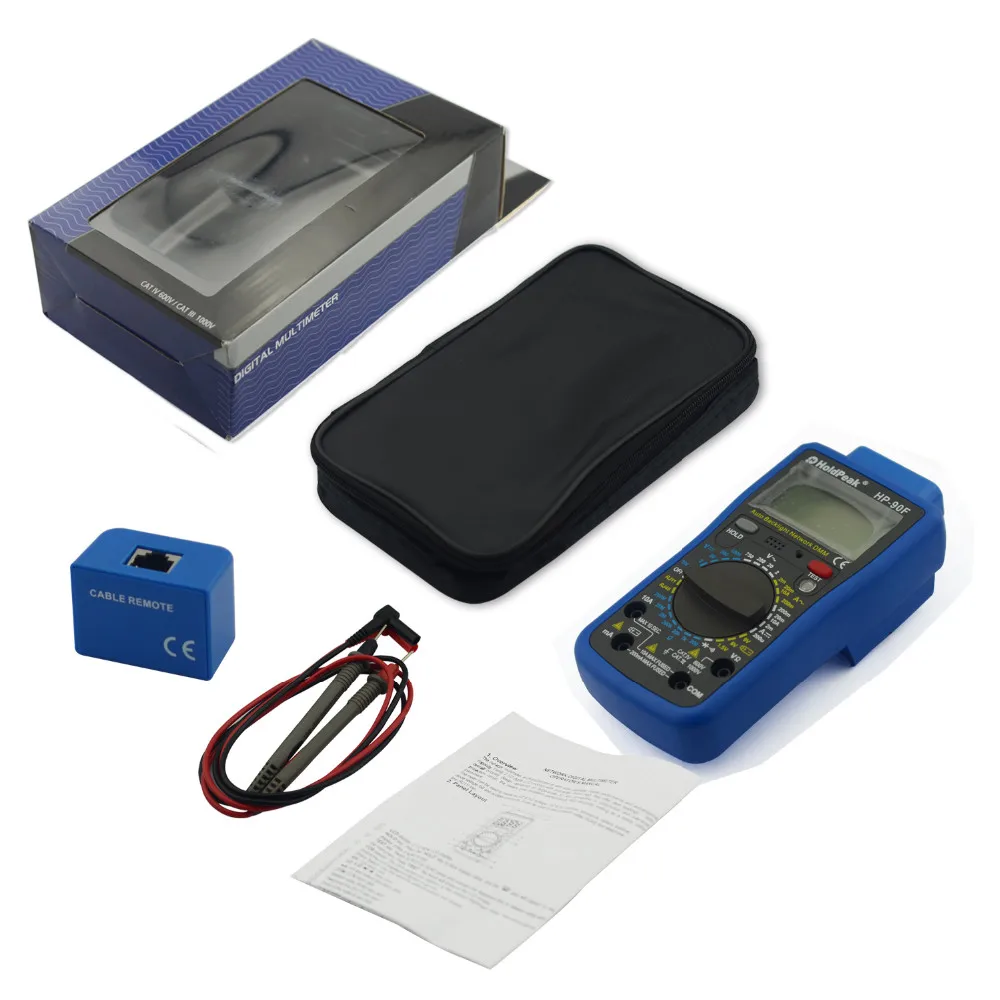

Package Included:
1 x HoldPeak HP-90F Digital Multimeter
1 x English Manual
1 x Test Leads
1 x Network Cable Remote
1 x Carry Bag
Packaging Details
- Unit Type: piece
- Package Weight: 0.56kg (1.23lb.)
- Package Size: 23cm x 15cm x 6cm (9.06in x 5.91in x 2.36in)
Warranty Information
7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
