Product Overview
HP-9234C tachometer is use to measure the speed or movement velocity. it is a ideal instrument to measure the rotational speed of contact or non-contact type.
It transform the physical movement speed into pulse signal by using contact wheel and single reflector laser or optical and using microprocessors for operation.
It widely used in industrial site monitor, remote measurement and other high precision measurement .
- Large LCD displaying
- Wide range of the measurement and high-resolution.
- Automatic measuring and manual measuring selection.

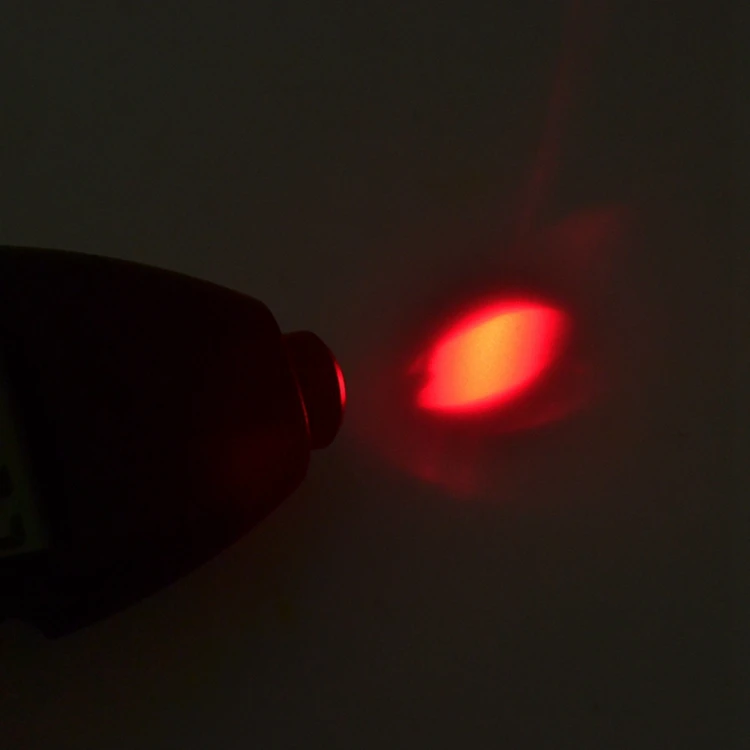

- High and low power of laser alternative for far and near distance measurement and eye protection.
- Auto recording 50 sets of data and adjustable sampling interval time.
- Automatic to record the Max, Min and Average data.
- With LCD backlight, it can work in the dark.
- Auto shut off after 30 seconds without operation.
- Large screen display, clear reading.
- light Weight and hard shell ABS plastic, nice shape, easy to use.
- Measure the speed of lathe motors and machine.
- Display: 5 digits LCD display, Max 99999
- Speed measure range: 7.0RPM-9999.9RPM 10000RPM~99999RPM
- Resolution:7.0RPM-9999.9RPM (0.1RPM); OVER10000RPM(1RPM)
- Accuracy: (0.05% rdg + 1 digital)
- Available distance: 50mm-600mm
- Sampling time: 0.5s(over 120 RPM)
- Operating Temperature: 0 ~ 50 degrees Celsius
- Storage Temperature: -20 ~ 60 degrees Celsius
- Function 1: MAX/MIN/AVG date refer
- Function 2: Auto Back-Light
- Function 3: Back-Light Key
- Function 4: Auto power off
- Powered by: 1.5V(AA)*4 (Not included)
- Output: less than 1mw
- Material:Hard shell ABS plastic
- Tachometer size: 122*52*28mm / 4.8 * 2.0 * 1.1in
- Tachometer weight: 156g / 5.5oz
- Detector type: LASER TACH

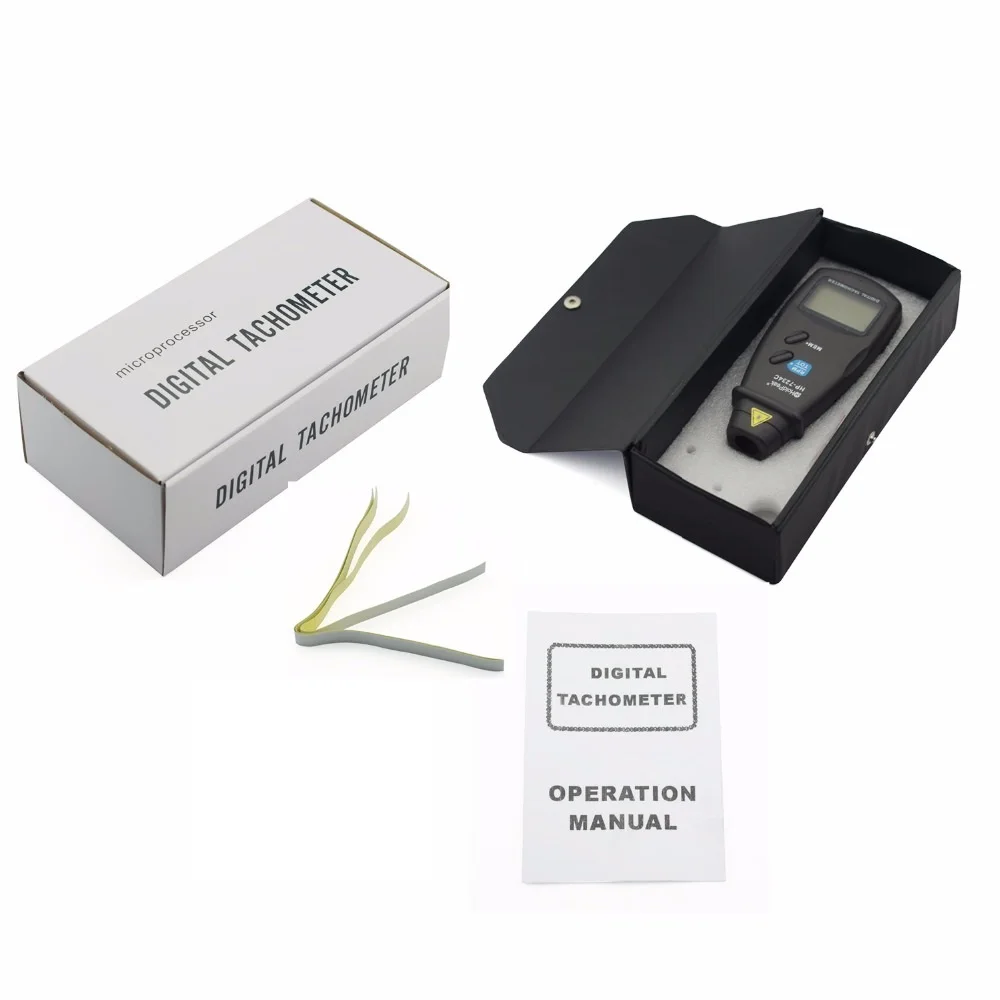

- 1 x Digital Laser Photo Tachometer Non Contact Rpm Tach(Not Include Battery)
- 1 x English Manual
Warranty Information
7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
